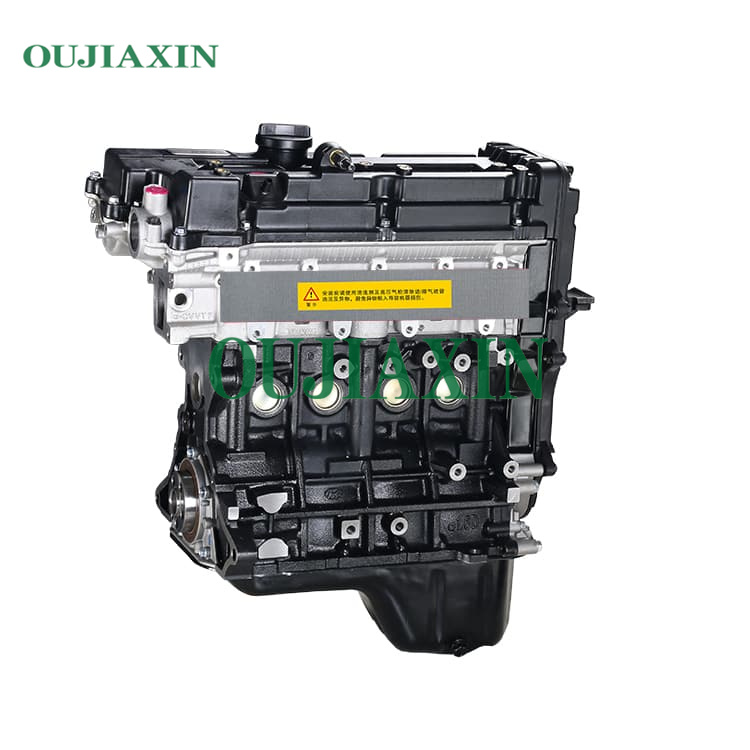

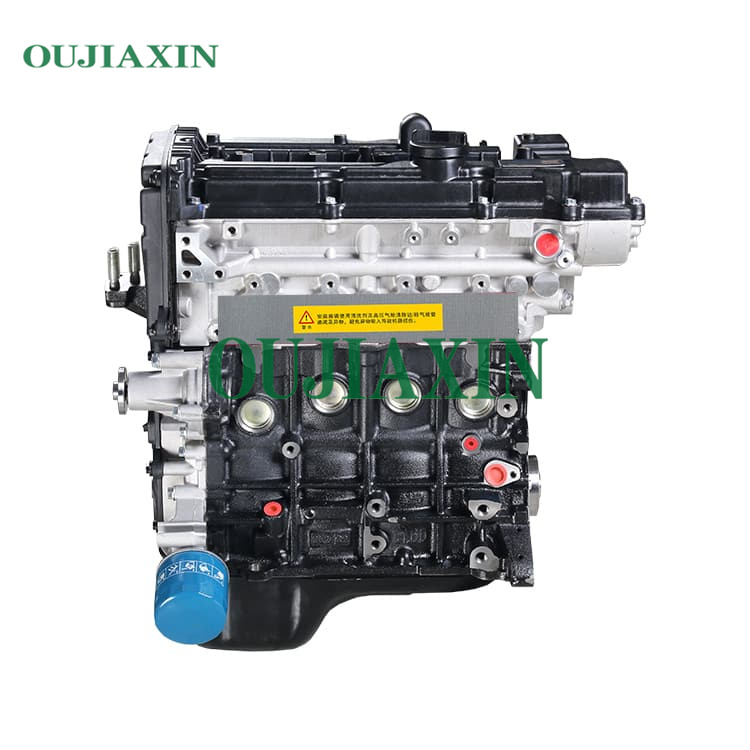

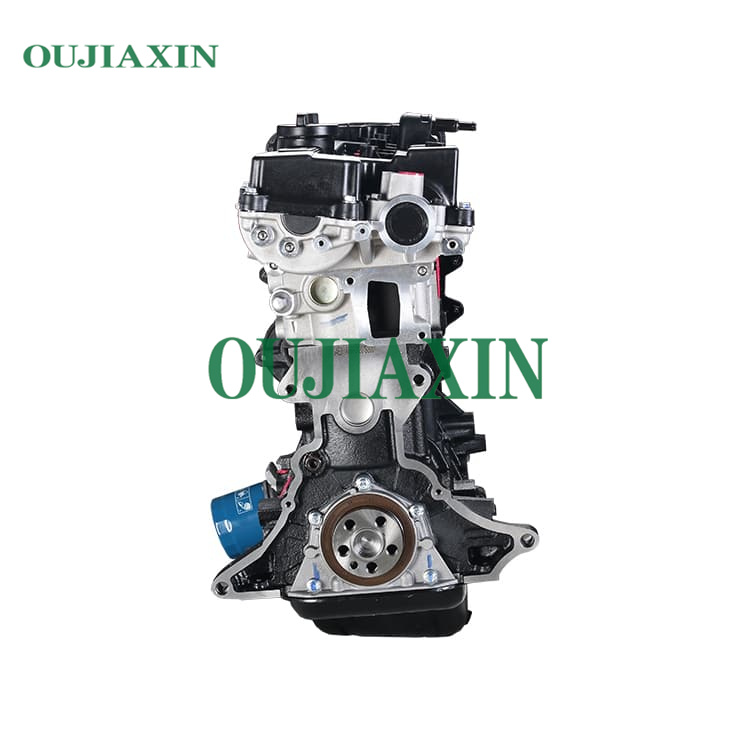

Suitable for Hyundai Elantra 1.6 Kia Cerato VVT G4ED engine
The maximum power output of the G4ED 1.6L engine has increased by about 7%. Corresponding to the performance improvement of the new CVVT engine, the transmission of Cerato has been re-adjusted to achieve a high balance of strong power and stability. In addition, the new applicable CVVT engine realizes the effective control of fuel consumption. For example, the 2007 Cerato 1 6L M/T 90km/h constant speed fuel consumption drops from the original 6.17L to 5.52L, achieving a fuel saving effect of up to 10%. .
Description
1.6L (G4ED)
The Hyundai Alpha-II G4ED is an inline 4 cylinder, spark-ignition four-stroke, double overhead camshafts (DOHC) with 16 valves. The engine has an advertised output of 105–112 PS (77–82 kW; 104–110 hp) at 6,000 rpm and 14.6–14.9 kg m (143–146 N m; 106 –108 lb.ft).
Specification:
Bore Diameter: 76.5 mm (3.01 in)
Travel: 87 mm (3.43 in)
Total displacement: 1,599 cc (97.6 cu in)
Compression ratio: 10.0:1
Shot order: 1-3-4-2
Idle speed: 750±100
Ignition timing at idle: BTDC 9° ± 5°/800 rpm
Dimensions (L x W x H): 465mm x 572mm x 654mm
Weight (dry): 118.2 kg (260.6 lbs)
Alternator: 13.5V/90A
Starter motor: 12V/0.9KW
Application field
2005–2011 Kia Rio (Johor Bahru)
2000–2001 Hyundai coupe (RD)
2000–2006 Hyundai Elantra (XD)
2001–2008 Hyundai Coupe (GK)
2003–2010 Hyundai Accent (LC/MC)
2003–2006 Kia Cerato (LD)
2002-2010 Hyundai Matrix (FC)
2003–2006 Kia Maxima
2005–2011 Hyundai Gates
2008–2020 Hyundai Elantra (Chinese market only)
