Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  1. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  2. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  3. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  4. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  5. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid
  6. Piston Hyundai G4LE STD 23041-03HA0 1.6 Hybrid

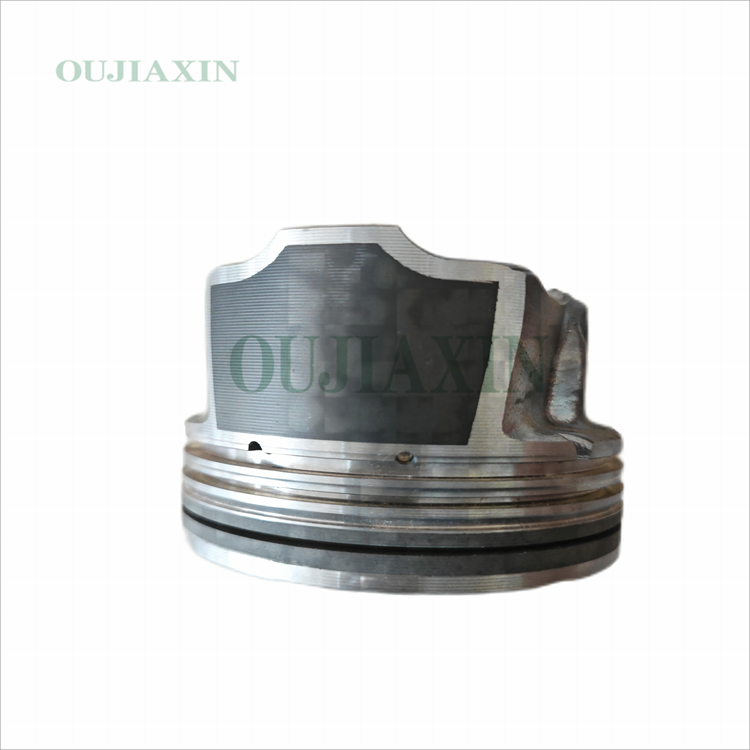

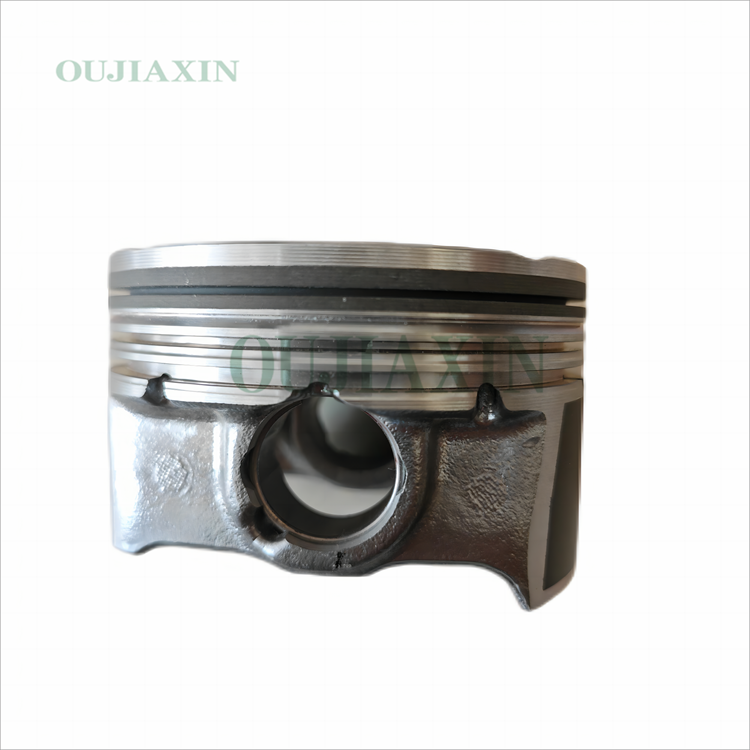

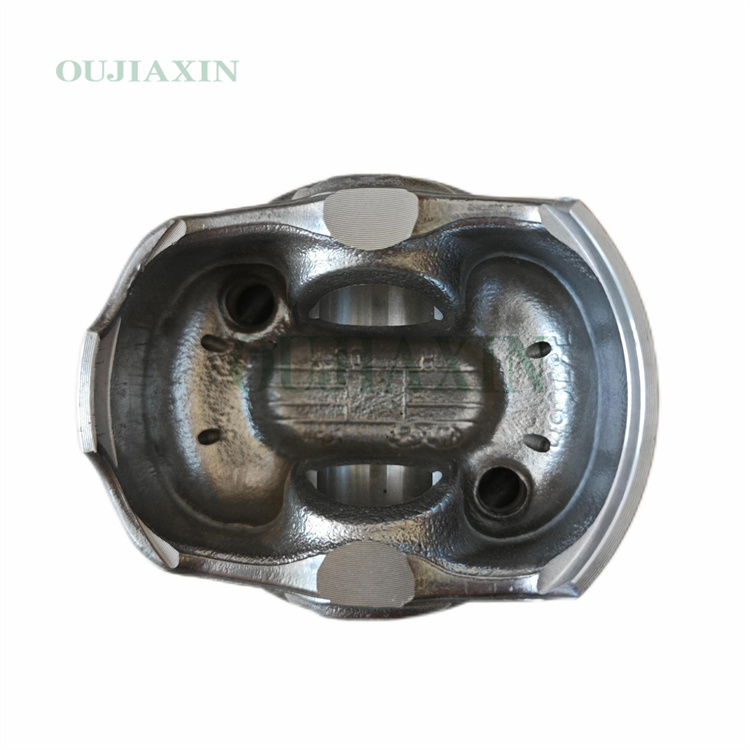

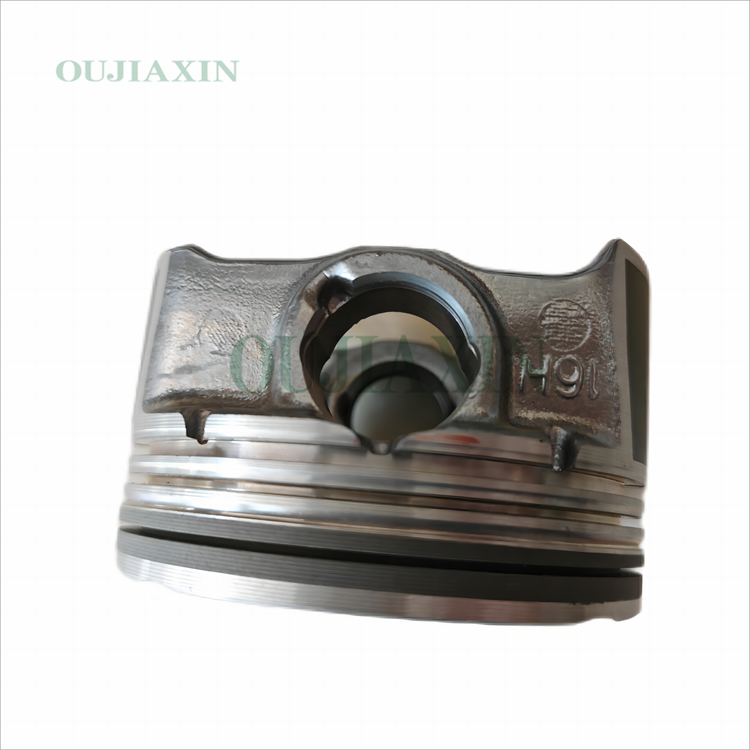

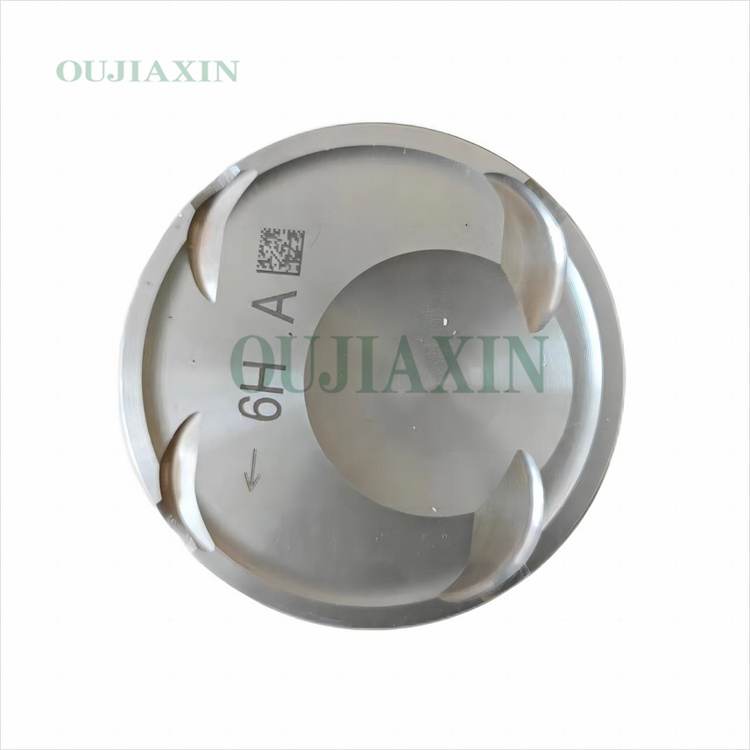

Piston kit 23041-03HA0 2304103HB0 2304103HC0 used for HYUNDAI KIA G4LE STD 1.6L

The Smartstream G1.6 GDI Plug-in Hybrid (G4LE) combines the Smartstream G1.6 engine with a 60 PS (59 hp; 44 kW) 17.3 kg⋅m (170 N⋅m; 125 lb⋅ft) electric motor and a 12.9KWh battery.

Category: Tag:

Description

The 1.6 GDI Hybrid (G4LE) combines a Smartstream G1.6 engine producing 105 PS (104 hp; 77 kW) @ 5,700 rpm and 15 kg⋅m (147 N⋅m; 108 lb⋅ft) @ 4,000 rpm, a 44 PS (43 hp; 32 kW) 17.3 kg⋅m (170 N⋅m; 125 lb⋅ft) electric motor and a 1.32KWh battery for a total combined system power of 141 PS (139 hp; 104 kW) @ 5,700 rpm and 27 kg⋅m (265 N⋅m; 195 lb⋅ft) of torque.

Engine model G4LE Displacement (L) 1.6
Cylinder capacity (cc) 1580 Intake form Naturally aspirated
Cylinder arrangement L Number of cylinders (pieces) 4
Number of valves per cylinder (pieces) 4 Compression ratio 13
Maximum horsepower (ps) 105 Power (KW) None
Power speed (rpm) 5700 Torque (N.m) 147
Torque speed (rpm) 4000 Engine special technology
Fuel type Hybrid fuel Fuel grade 92#
Fuel supply method Direct injection Engine position Front
Emission standard Euro 5

Applications (G4LE)

Hyundai Elantra Hybrid (CN7) (2020-present)
Hyundai Kona (OS) (2020-present)
Kia K3 Hybrid (BD) (2020-present)
Kia Niro Hybrid (DE) (2016-present)
