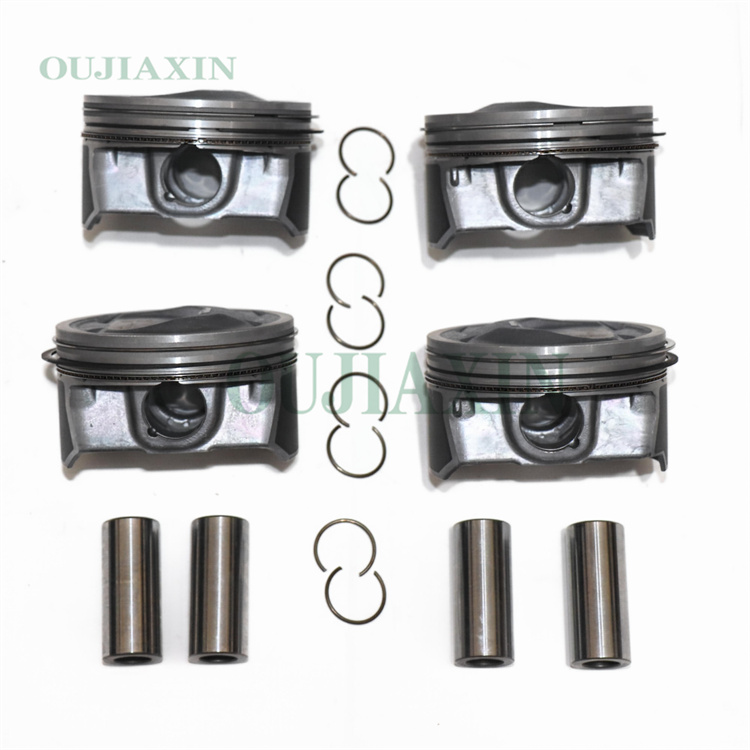

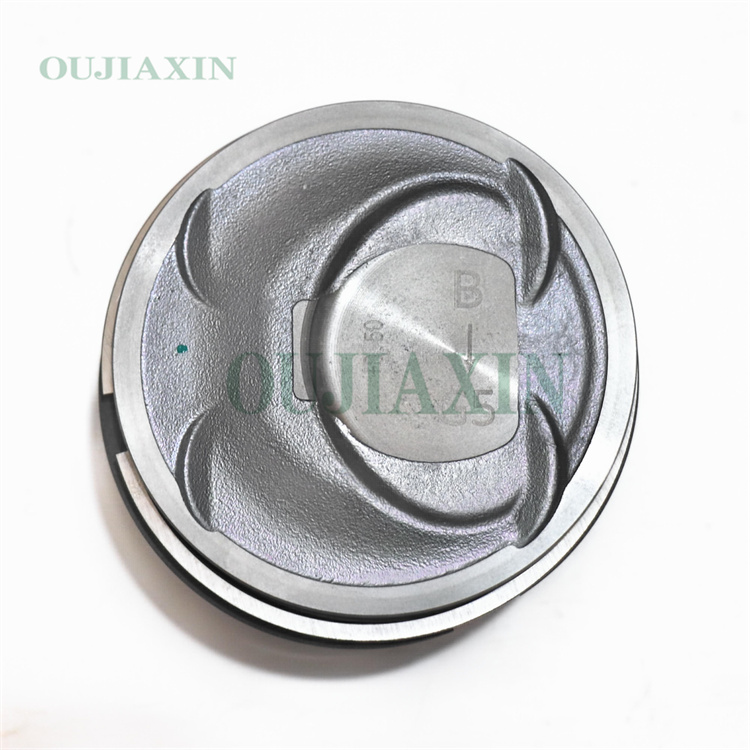

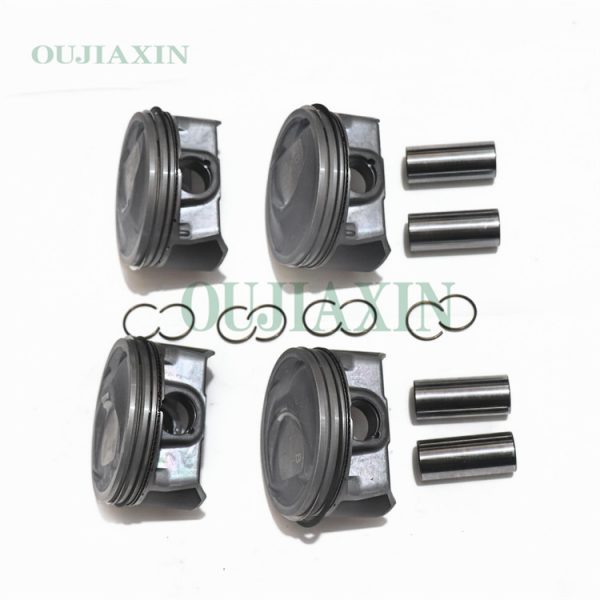

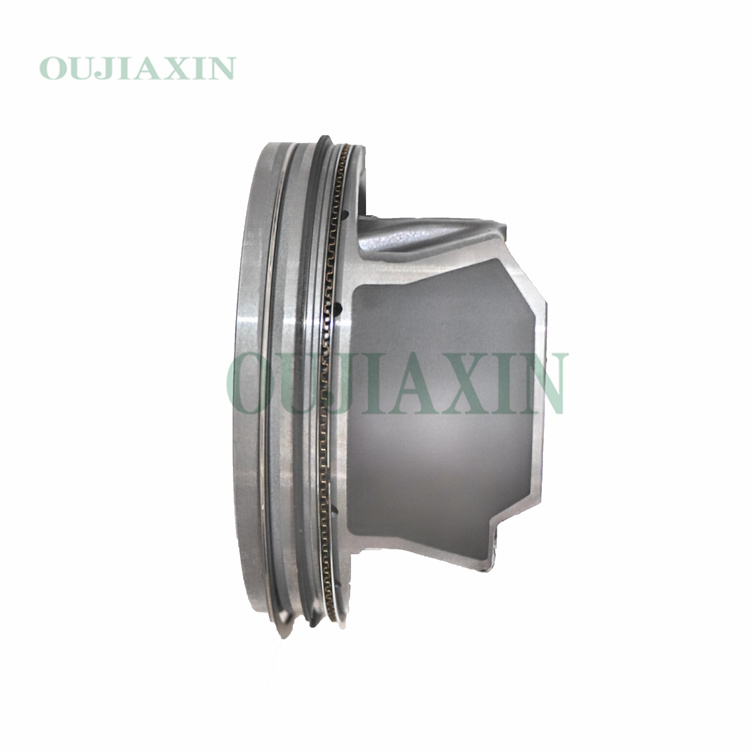

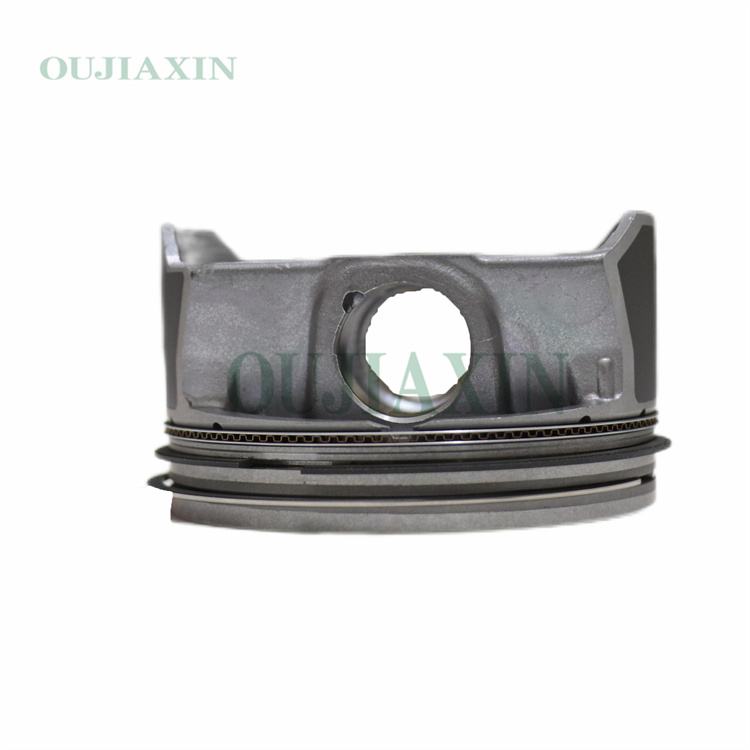

Piston assembly for Hyundai Kia Sonata Sorento Optima 2.4L 0.5 OEM 23410-2G500 23040-2G200

Description

The Theta II GDi was released starting with the sixth-generation Sonata in November 2009, with modifications including a switch to GDI. Compression ratio was 11.3:1, with output rated at 201–203 PS (148–149 kW; 198–200 hp) at 6,300 rpm and torque at 4,250 rpm, while later versions were rated at 188 PS (138 kW; 185 hp) at 6,000 rpm and torque at 4,000 rpm.

Brand: OUJIAXIN
Model: G4KJ
Applicable models: Beijing Hyundai Shengda DM 2.4L
Diameter: 88.5mm (mm)
Number of ring grooves: 3
Piston ring structure: steel belt combined oil ring
Piston ring cross-section shape: barrel ring
Surface carburizing depth: 0.1
Surface hardness: greater than 500HV
Material: ZL109
Cylinder force: 88.5mm
Cylinder diameter: 88.5mm
Cylinder type: inline four-cylinder
Accessory number: 23410-2G500 0.5
Applicable car series: Beijing Hyundai
Applicable model: G4KJ
Pin hole × pin length: 22*52 (mm) (mm)
Compression height: 28.6mm (mm)
General tolerance according to: national standard
Oil ring: 2.0
Center hardness: greater than 350HV
Total height: 55mm (mm)
Applicable models: Beijing Hyundai Shengda DM 2.4L
Matching relationship: Applicable
Article number: 23410-2G500 0.5
