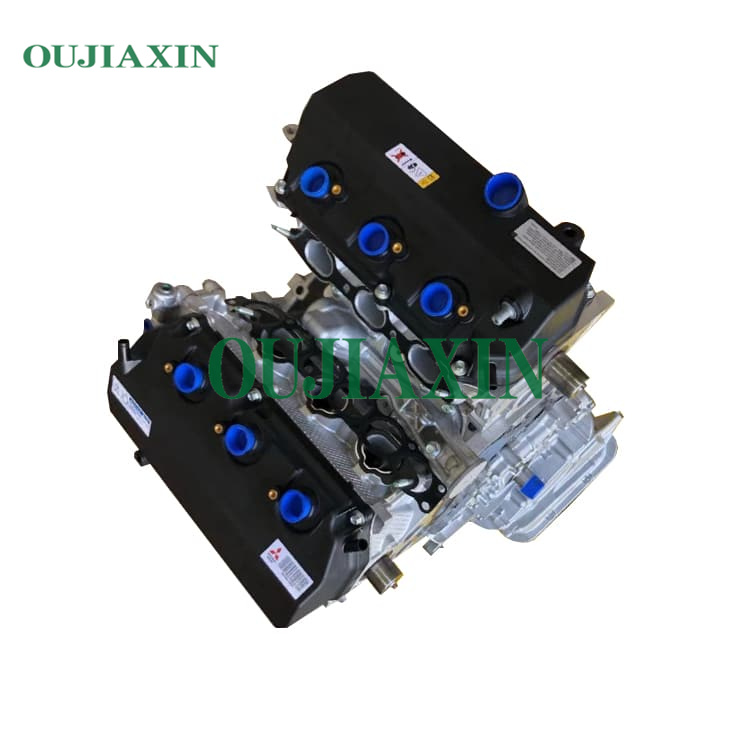

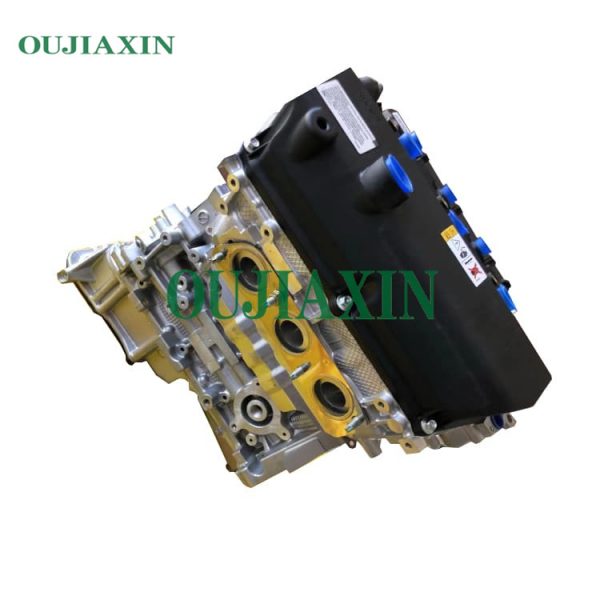

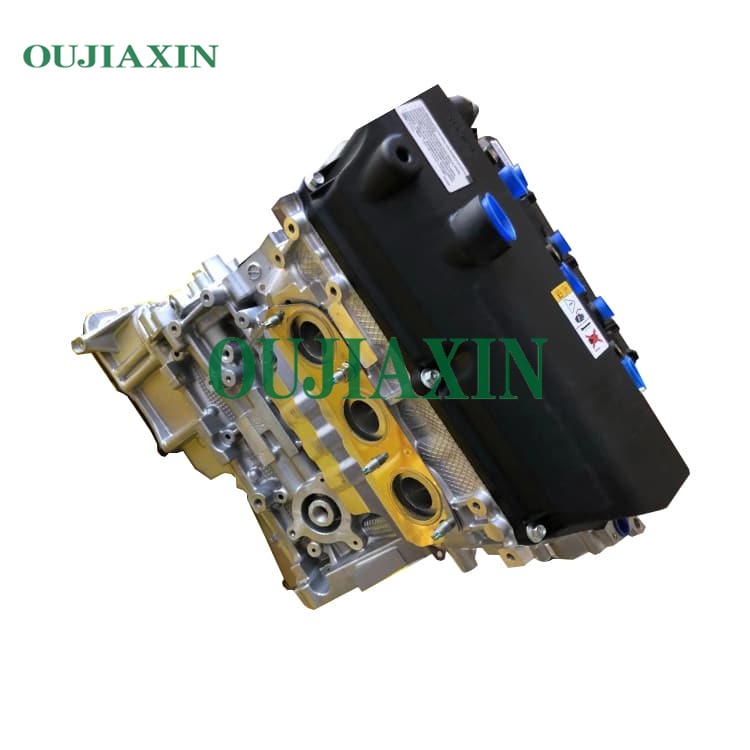

Original imported Mitsubishi Outlander new speed run Jinchang EX Jinjie 3.0 6B31 engine

Code name 6B31:
6 means it is a 6-cylinder machine,
3 means it is the third series of B series engines.
And 1 means it is the first of the 3 series engines.
This 60° V6 engine uses an all-aluminum alloy, adopts a SOHC layout and a 4-valve per cylinder structure.
With the addition of the MIVEC system, which has variable timing and lift, the maximum horsepower of 252 horses is released at 6000rpm, and the torque curve is also relatively smooth, reaching the maximum torque at 4000rpm.

Category: Tag:

Description

Engine Type – V6 Cylinder, 60 Degree, SOHC 24v, MIVEC
Displacement — 3.0 L (2,998 cc)
Bore x Stroke — 87.6 mm × 82.9 mm (3.45 in × 3.26 in)
Compression ratio — 9.5:1, 2010 onwards 10.5:1
Power — 220 PS (162 kW; 217 hp) at 6250 rpm, from 2010 230 PS (169 kW; 227 hp)
Torque — 276 N·m (204 lb·ft) at 4000 rpm, 291 N·m (215 lb·ft) from 2010

Application areas

2007–2020 Mitsubishi Outlander
2012 to present Mitsubishi Pajero Sport
