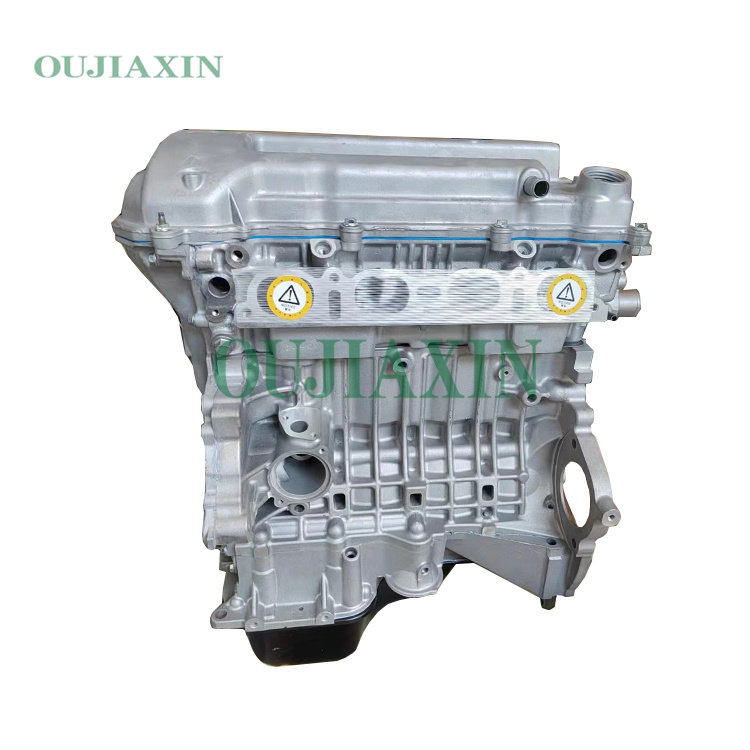

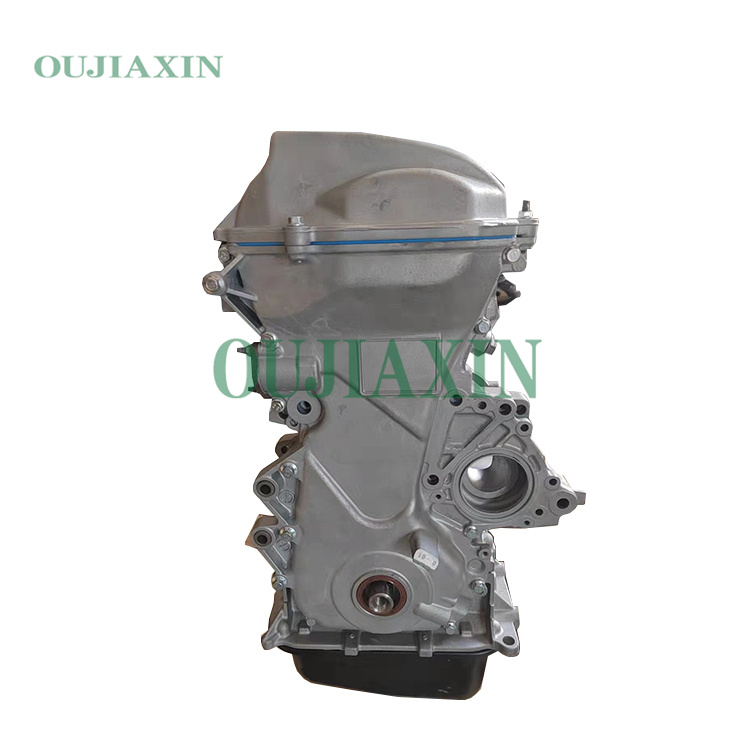

1ZZ engine for Toyota Corolla 1.8L

New 4 cylinder engine assembly 1ZZ-FE for Toyota Corolla RAV4 Celica car engine assembly for repair

The 1zz engine has a 79mm bore and 95mm stroke, with an 8-displacement specification. Its compression ratio is 10:1, it is made of all-aluminum material, and equipped with VVT-i technology. It can output a maximum horsepower of 136 PS/6000rpm and a maximum torque of 14kgm at 4200rpm. The engine is made of all-aluminum material and equipped with VVT-i technology. These features improve the efficiency and durability of the engine.

Description

The 1ZZ-FE was a 1.8 L (1,794 cc) engine built in Buffalo, West Virginia. Bore × stroke was 79 mm × 91.5 mm (3.11 in × 3.60 in). Compression ratio was 10.0:1. Output was 120 bhp (122 PS; 89 kW) @5,600 rpm and 122 lbf⋅ft (165 N⋅m) @4,400 rpm; 130 bhp (132 PS; 97 kW) @6,400 rpm and 126 lbf⋅ft (171 N⋅m) @4,200 rpm.

Applications:
Toyota Corolla CE/LE/S/VE, Fielder, Runx (Japan), Altis (Asia)
Toyota Corolla Spacio
Toyota Corolla Verso
Toyota Allion
Toyota Premio
Toyota Vista and Vista Ardeo
WiLL VS
Toyota Caldina
Toyota RAV4
Chevrolet Prizm
Pontiac Vibe
Toyota Celica GT
Toyota Matrix
Toyota Avensis
Toyota Opa
Toyota Isis
Toyota Wish
Lotus Elise
