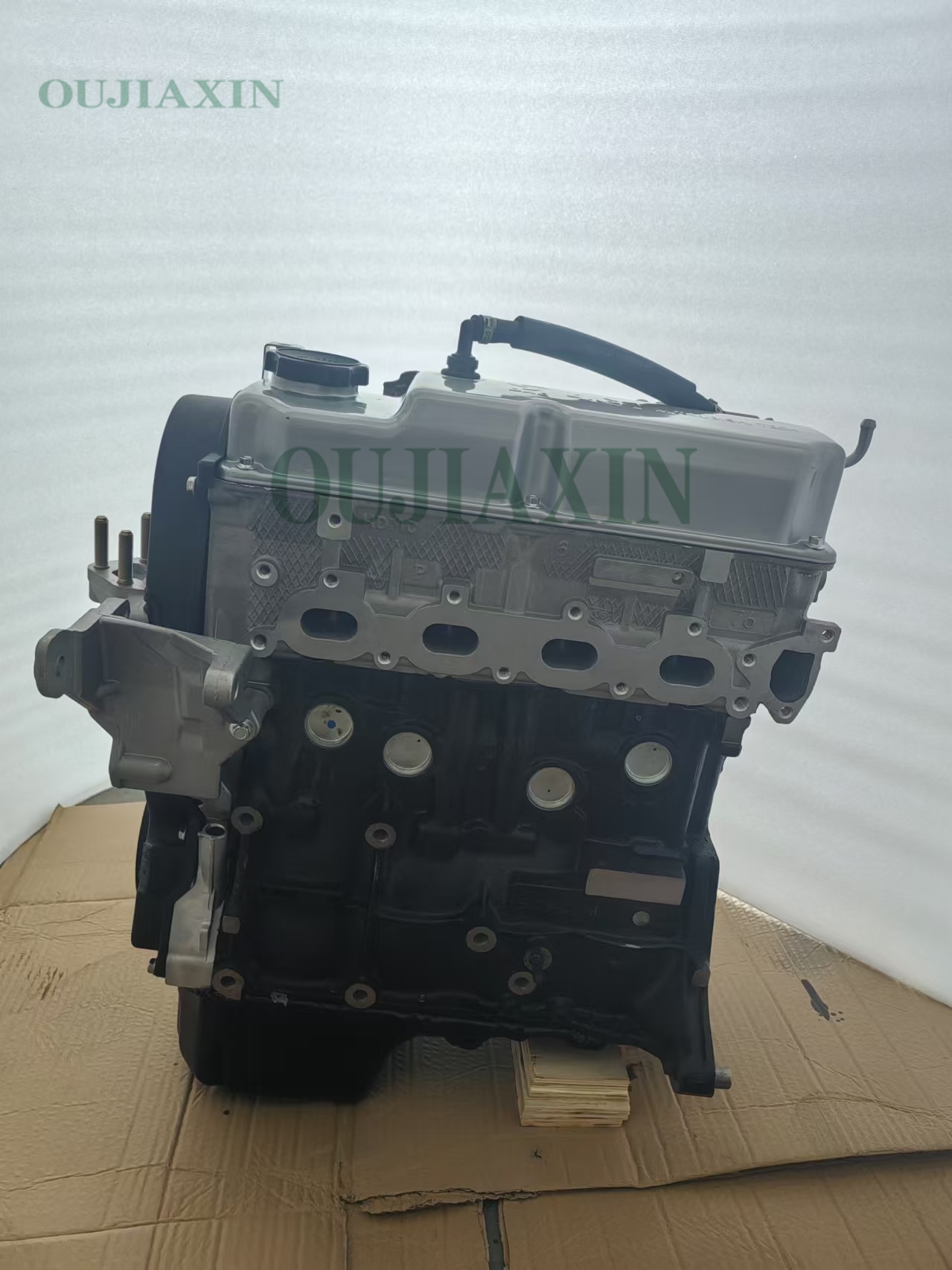

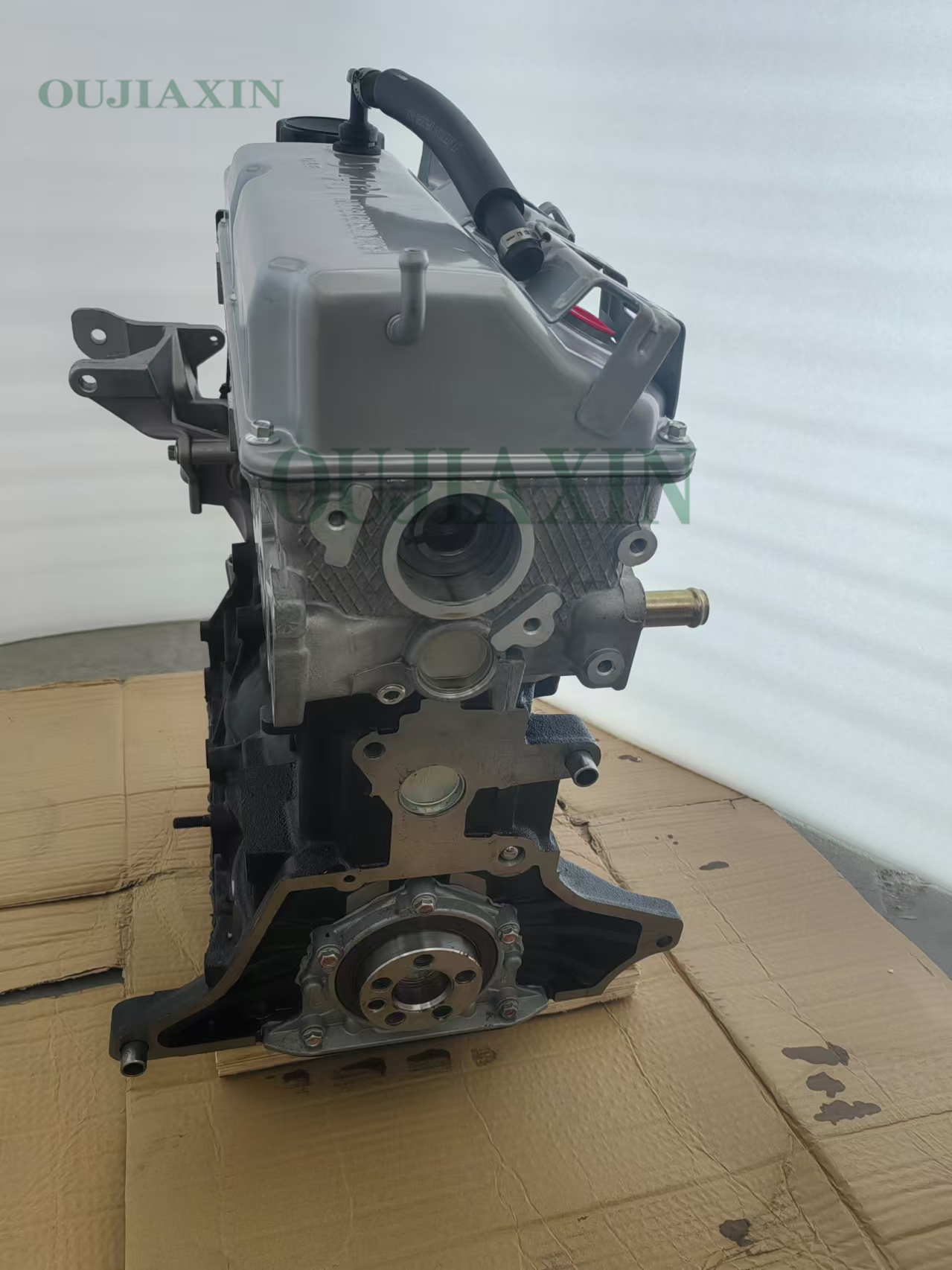

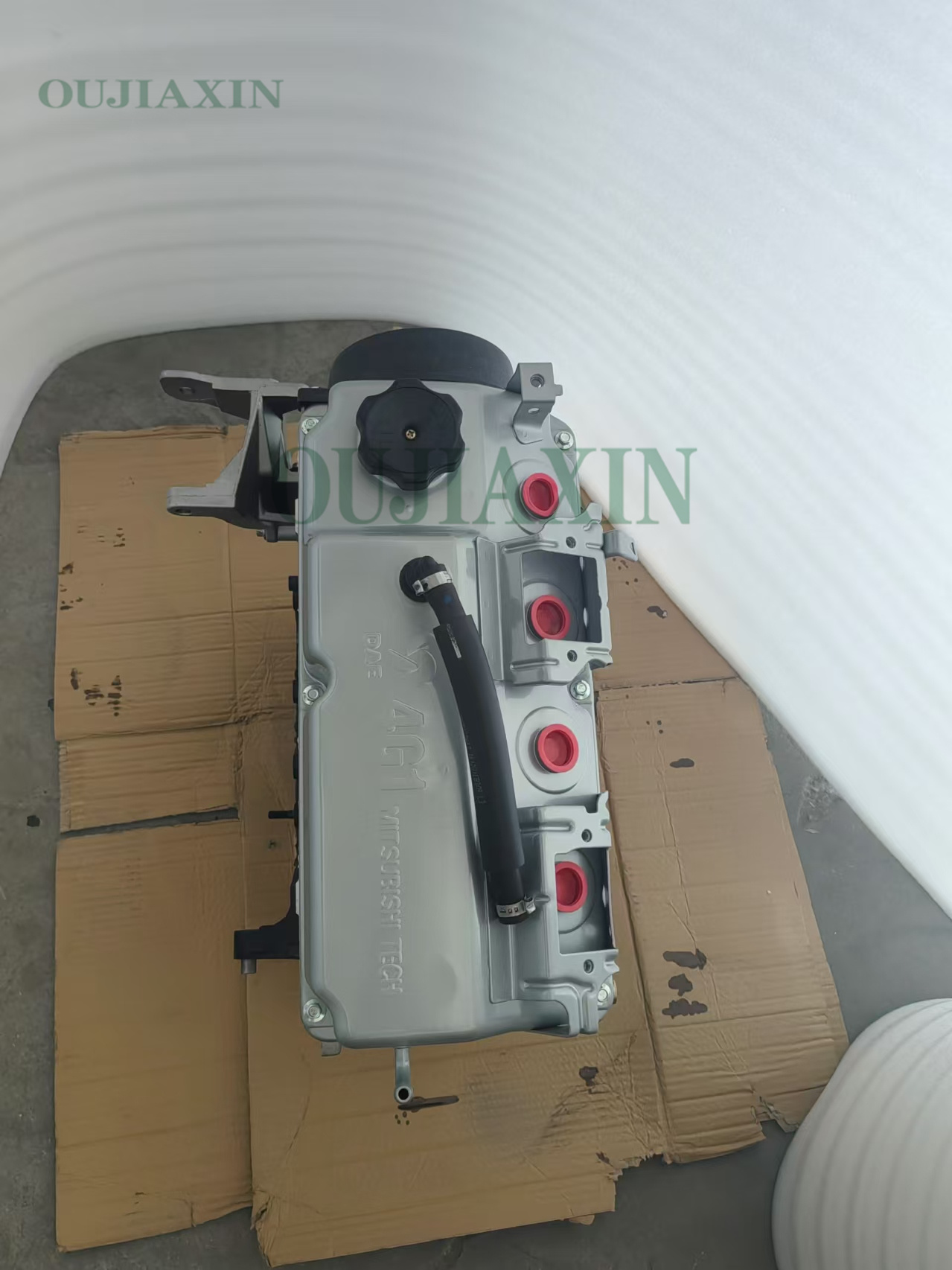

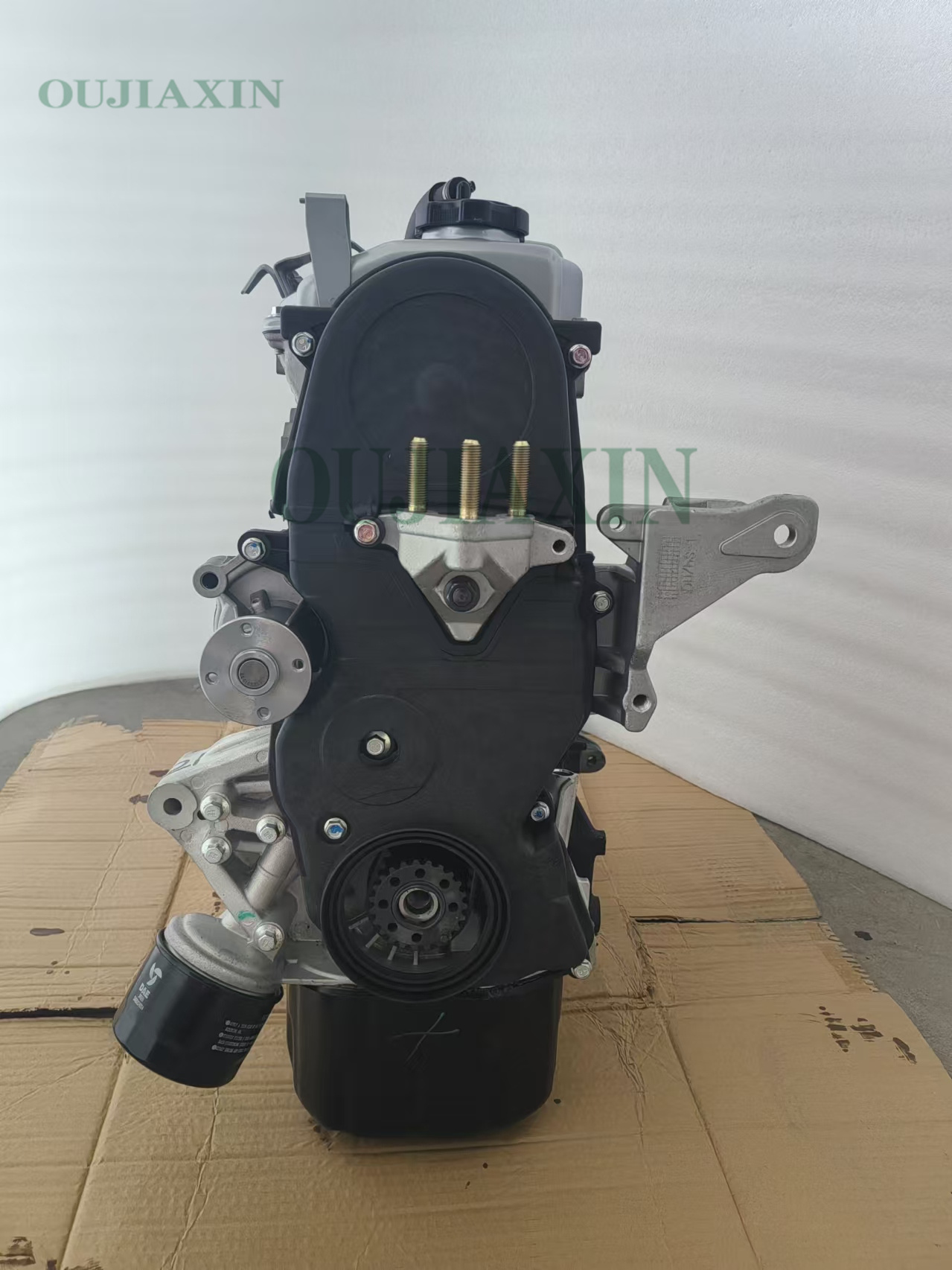

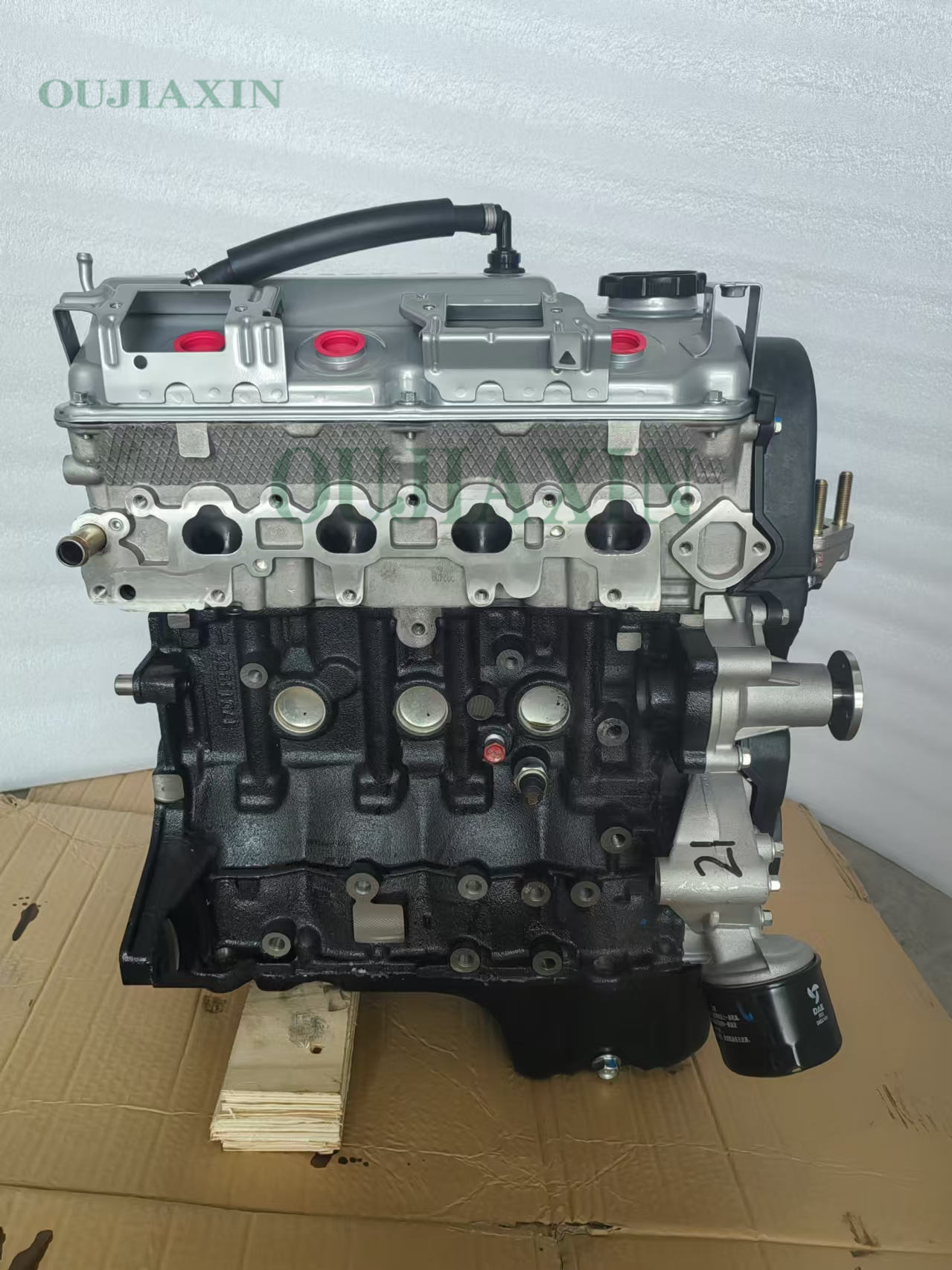

New 1.6L engine 4G18 engine for 2003-2013 new version Mitsubishi Lancer
The SOHC 4G18 displaces 1.6 liters (1,584 cc) with a bore and stroke of 76 mm × 87.3 mm (2.99 in × 3.44 in). It is a 4-valve-per-cylinder engine with outputs ranging from 98 PS (72 kW) to 110 PS (81 kW) and 150 N⋅m (111 lb⋅ft) of torque. It uses COP (coil on plug, also known as coil on spark plug) ignition, relying on one coil to ignite two cylinders, with one cylinder ignited by a spark plug wire.
Description
Model: CVVT-JL4G18
Type: Inline four-cylinder, four-stroke, water-cooled, double overhead camshaft (DOHC), 16 valves, equipped with intelligent continuously variable intake phase CVVT technology
Combustion chamber type: Single inclined top ridge type
Electronic control system: Distributorless design, group ignition, multi-point sequential injection
Bore × stroke: 79mm × 91.4mm
Total displacement: 1.792 liters
Compression ratio: 10:1
Maximum power: 102 kW at 6000~6200 rpm
Maximum torque: 4 172 Nm at 100-4300 rpm
Full-load minimum fuel consumption rate: no more than 260 g/kW-h
Minimum no-load stable speed (idle): 800±50 rpm (1000±50 rpm when A/C is turned on)
Ignition sequence: The effective ignition sequence is 1-3-4-2 (group ignition of cylinders 1 and 4 and cylinders 2 and 3)
Fuel type: It is recommended to use 93 and above unleaded gasoline
Lubrication method: Pressure and splash lubrication
Oil specification: SAE10W-30 is recommended, API quality grade SG or above (SAE5W-30 is recommended for cold winter regions)
Oil capacity: 4 liters in dry full state
Oil consumption rate: no more than 2.2 g/kW·h
Oil pressure: ≥60Kpa at idle speed, maintained at 294~539Kpa at speed ≥3000 rpm
Applications:
Mitsubishi Colt Plus (Taiwan)
Mitsubishi Kuda
Mitsubishi Lancer
Mitsubishi Space Star
2010-2011 Foton Midi
Hafei Saima
Proton Waja
Zotye 2008 / Nomad / Hunter / T200, 2007-2009 78 kW
2005-2010 BYD F3
Hafei Saima
Fotye Midi
MPM Motors PS160
Brilliance BS2
Brilliance BS4
Landwind X6
Zotye T600
Zotye T700
Mitsubishi Lancer (China)
Southeast Lion
Haima Haifuxing
Tagaz Aquila 2013 to 2014
2009–2013 Emgrand EC7
Mitsubishi Pajero iO (3-door pre-facelift model, Australia)
