OUJIAXIN 3.6L TDV8 Diesel Engine

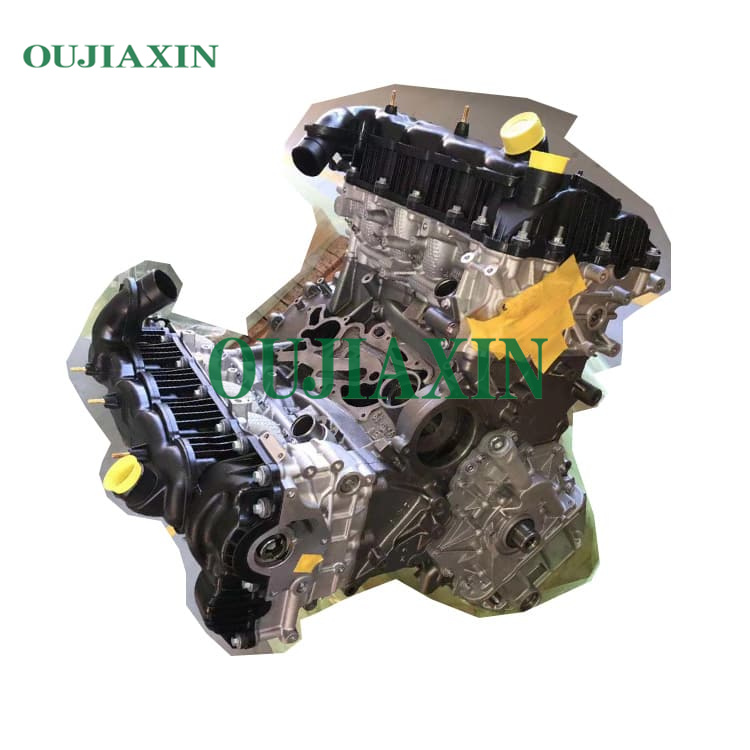

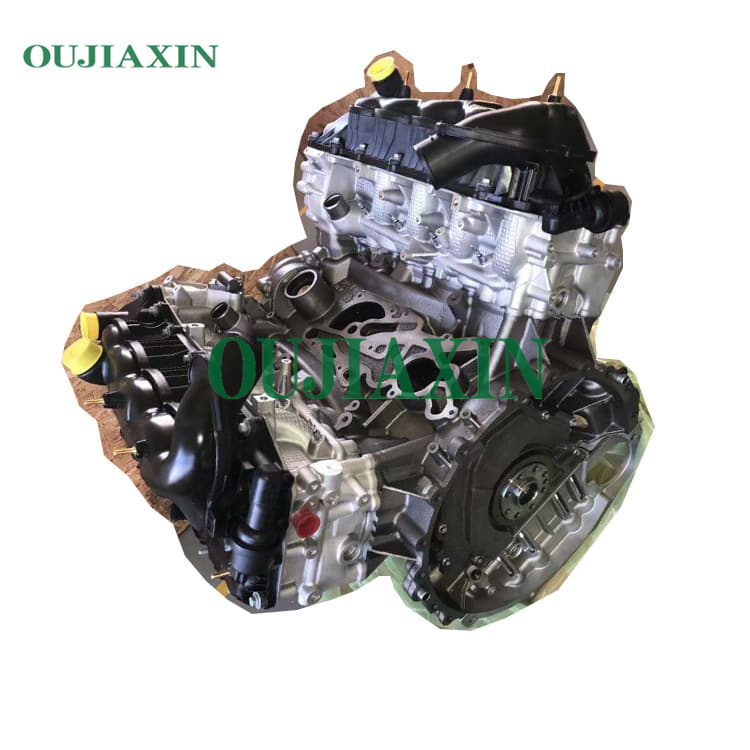

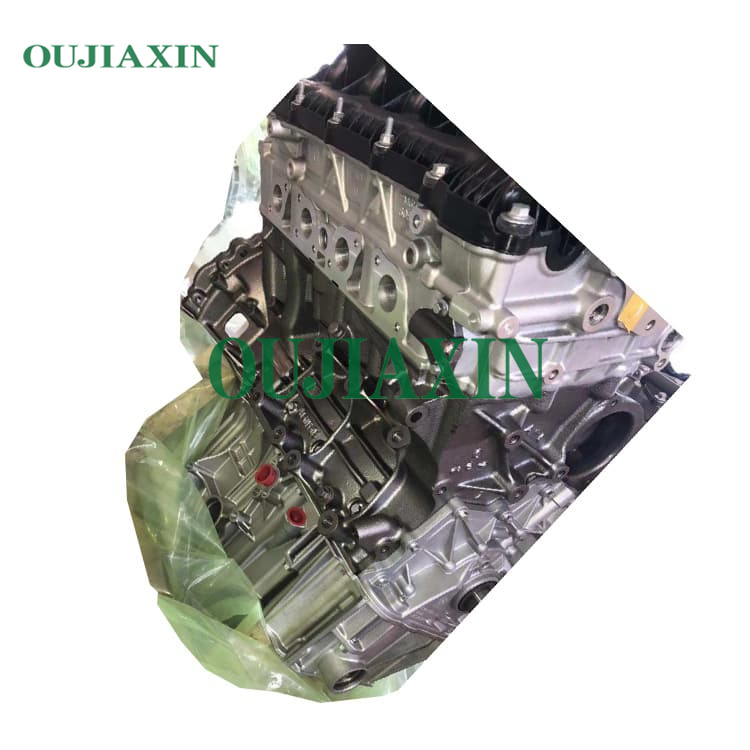

LR006675 amos bass Land Rover Range Rover 3.6 TDV8 Diesel Engine

This Range Rover is equipped with a 3.6L V8 twin-turbocharged diesel engine, code-named “TDV8”. This engine has a maximum horsepower of 272 horsepower, a maximum torque of 640 Nm, and a maximum injection pressure of 1700bar. The Range Rover’s combined fuel consumption with this engine is 11.1 liters/100 kilometers. This engine is the most powerful diesel engine ever produced in Range Rover, supporting Range Rover’s all-encompassing off-road capabilities with top performance.

Description

Engine model: TDV8
Displacement (mL): 3628
Intake form: Turbocharged
Cylinder arrangement: V
Number of cylinders: 8
Number of valves per cylinder (number): 4
Compression ratio: 17.3
Air distribution mechanism: DOHC
Maximum horsepower (Ps): 272
Maximum power (kW): 200
Maximum power speed (rpm): 4000
Maximum torque (N·m): 640
Maximum torque speed (rpm): 2000
Fuel form: Diesel
Fuel grade: No. 0
Fuel supply method: direct injection
Cylinder head material: aluminum
Cylinder material: aluminum
Environmental protection standards: Euro IV
