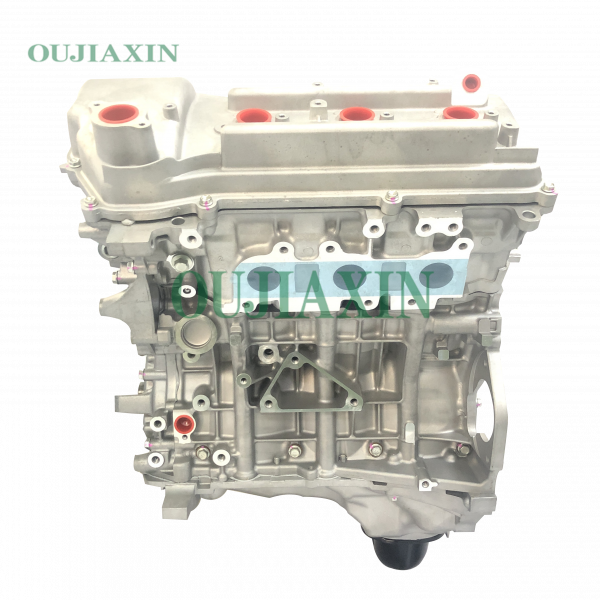

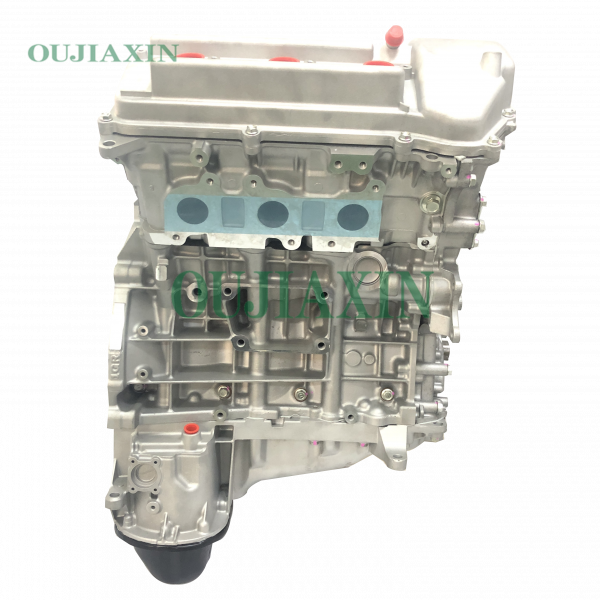

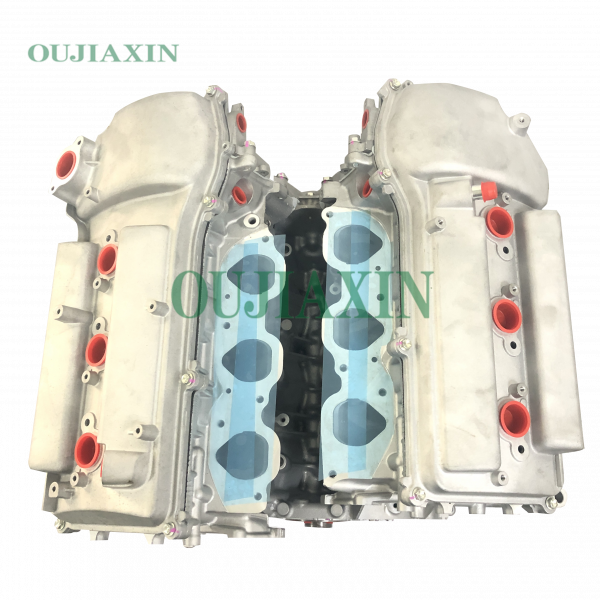

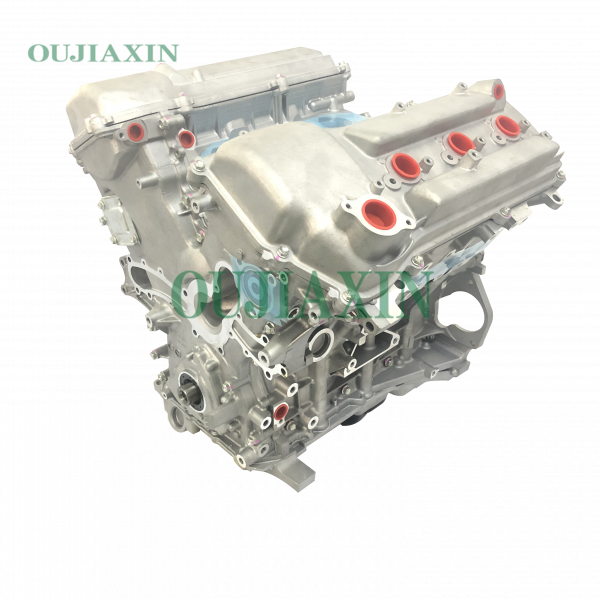

Hot selling Toyota 1GR engine assembly 6 cylinder 1GRFE engine for 1GR 2GR 3GR 5ZR models
1GR engines usually provide stronger torque, suitable for off-road and heavy-load scenarios, and are relatively economical in fuel consumption. Its high compression ratio and dual fuel injector technology further improve fuel efficiency.
Description
The 1GR-FE is 4.0 L (3,956 cc) with a bore and stroke of 94 mm × 95 mm (3.70 in × 3.74 in). Output is 237 hp (240 PS; 177 kW) at 5200 rpm and 266 lb·ft (361 N·m; 37 kg·m) of torque at 4000 rpm when tuned to 87 octane, and 240 hp (179 kW; 243 PS) at 5200 rpm and 278 lb·ft (377 N·m; 38 kg·m) of torque when tuned to 91 octane. The engine features Toyota’s VVT-i, variable valve timing system on the intake cam, and a compression ratio of 10.0:1.
Applications using VVT-i:
2002–2009 Toyota 4Runner / Hilux Surf (GRN210/215)
2007–2011 Toyota Land Cruiser (GRJ200)
2002–2009 Toyota Land Cruiser Prado (GRJ120/121/125)
2004–2015 Toyota Tacoma (GRN225/245/250/265/270)
2005–2015 Toyota Hilux (GGN10/20)
2005–2006 Toyota Tundra (GSK30)
2006–2009 Toyota Tundra (GSK50/51)
2005–2015 Toyota Fortuner (GGN50/60)
2006–2009 Toyota FJ Cruiser (GSJ10/15)
2009 to present Toyota Land Cruiser 70
2015 to present Toyota Hilux
