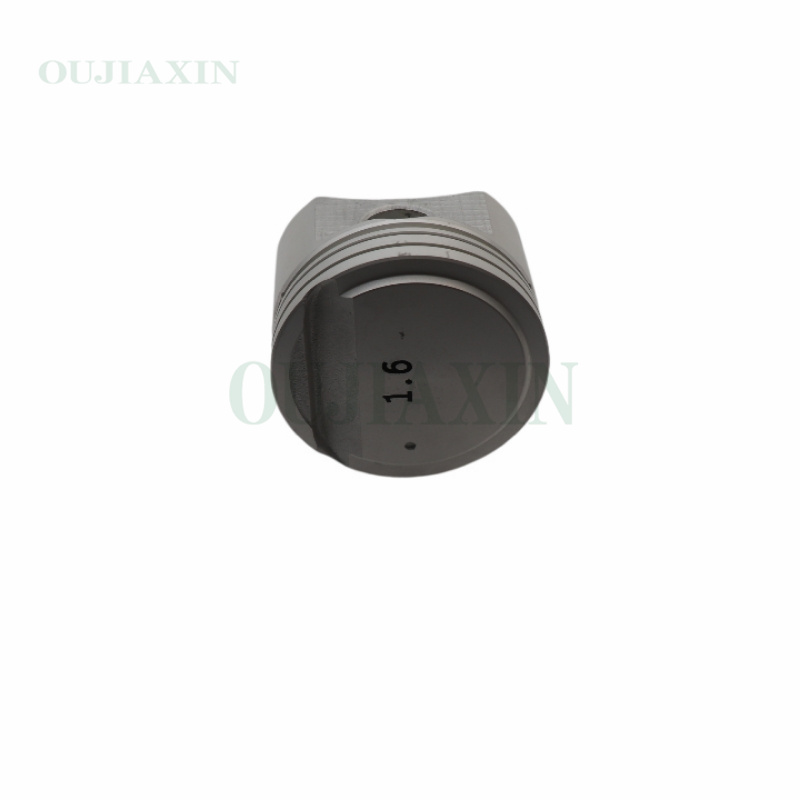

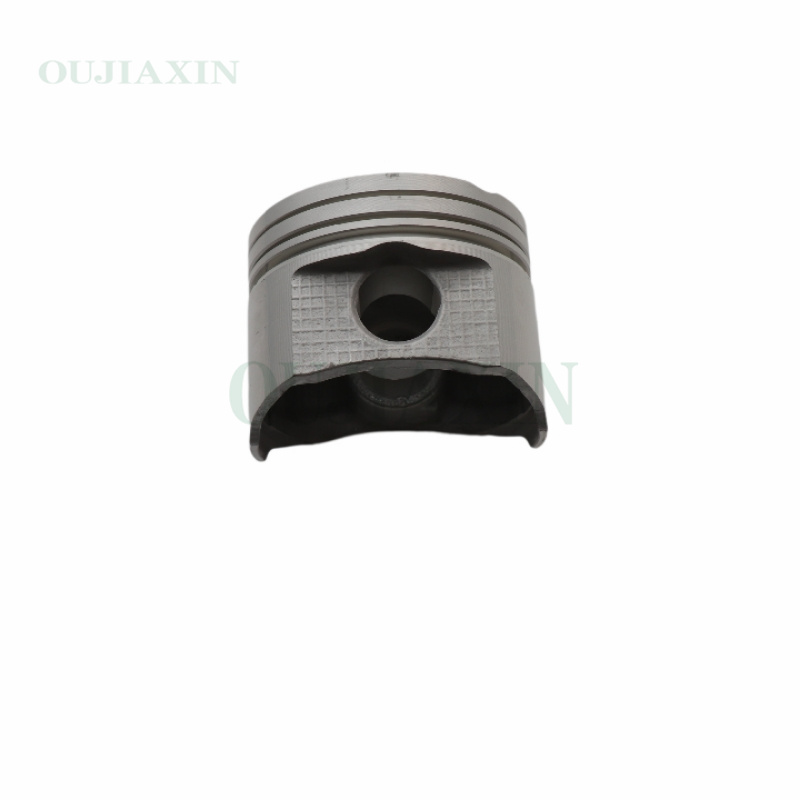

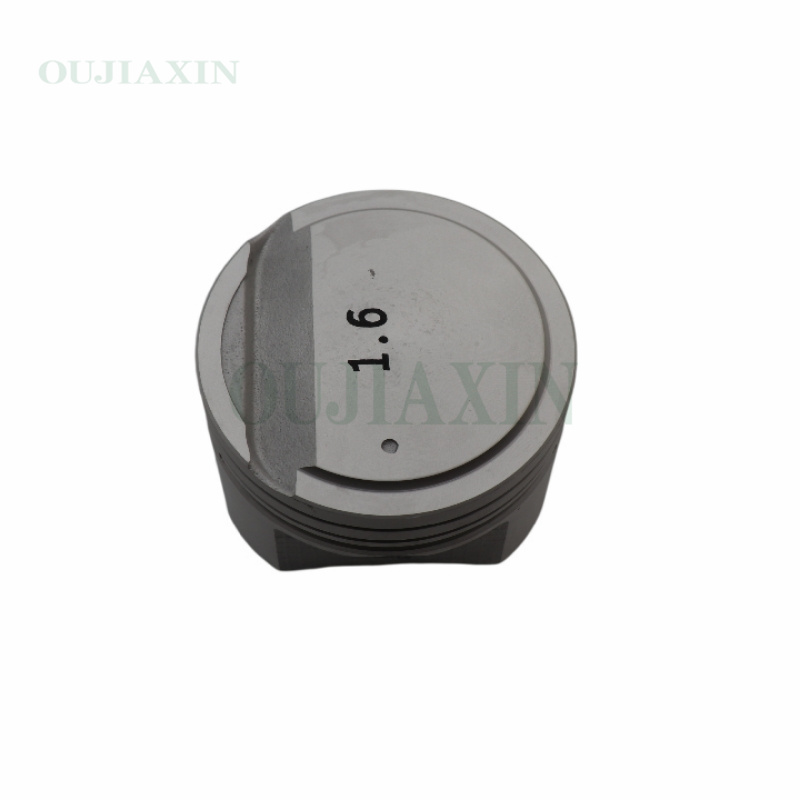

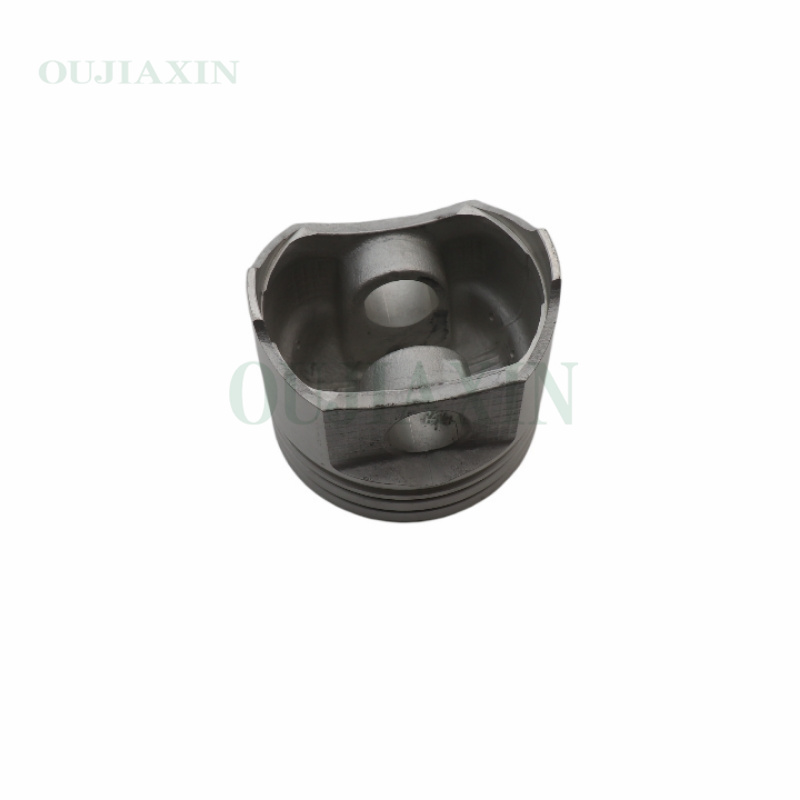

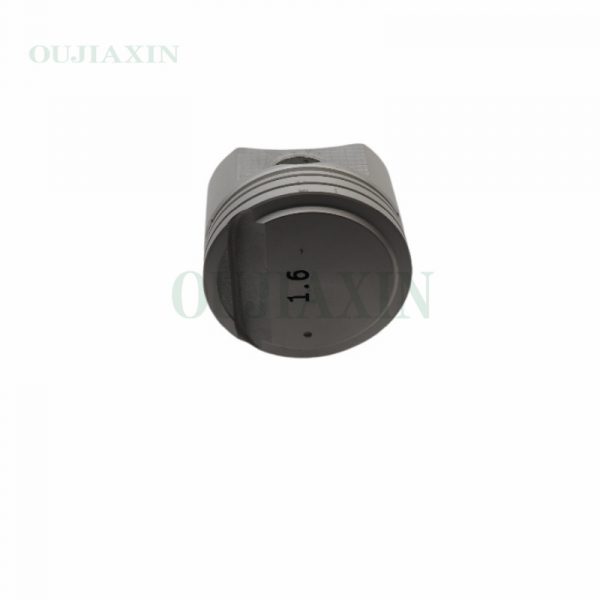

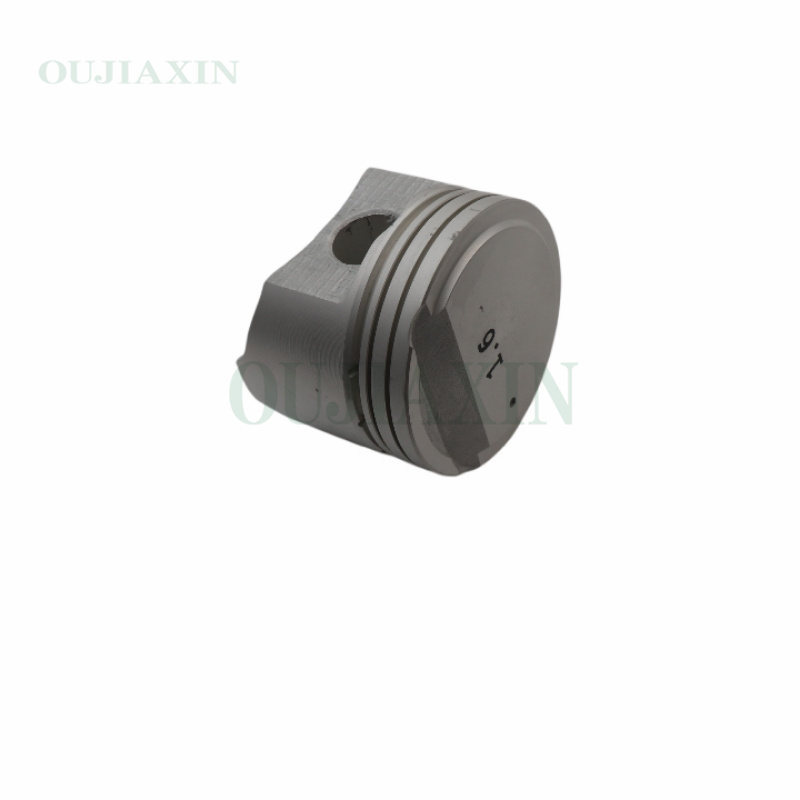

High quality key element piston 23410-23511 for Hyundai ELANTRA auto engine systems piston
Model: 23410-23511
Applicable models: Elantra 1.6 displacement engine
Diameter: 77.4 (mm)
Number of ring grooves: 3
Piston ring structure: steel belt combined oil ring
Piston ring cross-sectional shape: barrel ring
Surface carburizing depth: 0.1
Surface hardness: greater than 500HV
Material: ZL109
Origin: Hebei
Cylinder strength: 77.4
Bore diameter: 77.4mm
Cylinder type: in-line four-cylinder
Part number: 23410-23511
Applicable car series: HYUNDAI
Applicable models: Elantra 1.6 displacement
Pin hole × pin length: 20*60 (mm)
Compression height: 32.9 (mm)
General tolerance is: 0.001
Oil ring:2.5
Center hardness:50
Total height: 60.8 (mm)
Description
Custom processing: Yes
Brand: HYUNDA
Model: 23410-23511
Applicable models: Elantra 1.6 displacement engine
Diameter: 77.4 (mm)
Number of ring grooves: 3
Piston ring structure: steel belt combined oil ring
Piston ring cross-sectional shape: barrel ring
Surface carburizing depth: 0.1
Surface hardness: greater than 500HV
Material: ZL109
Origin: Hebei
Cylinder strength: 77.4
Bore diameter: 77.4mm
Cylinder type: in-line four-cylinder
Part number: 23410-23511
Applicable car series: HYUNDAI
Applicable models: Elantra 1.6 displacement
Pin hole × pin length: 20*60 (mm)
Compression height: 32.9 (mm)
General tolerance is: 0.001
Oil ring:2.5
Center hardness:50
Total height: 60.8 (mm)
Applicable models: Elantra 1.6 displacement
Supporting relationship: applicable
Item number: 23410-23511
Applicable car brands: HYUNDAI
Applicable model year: 2008
Applicable vehicle transmission type: MT/manual transmission
