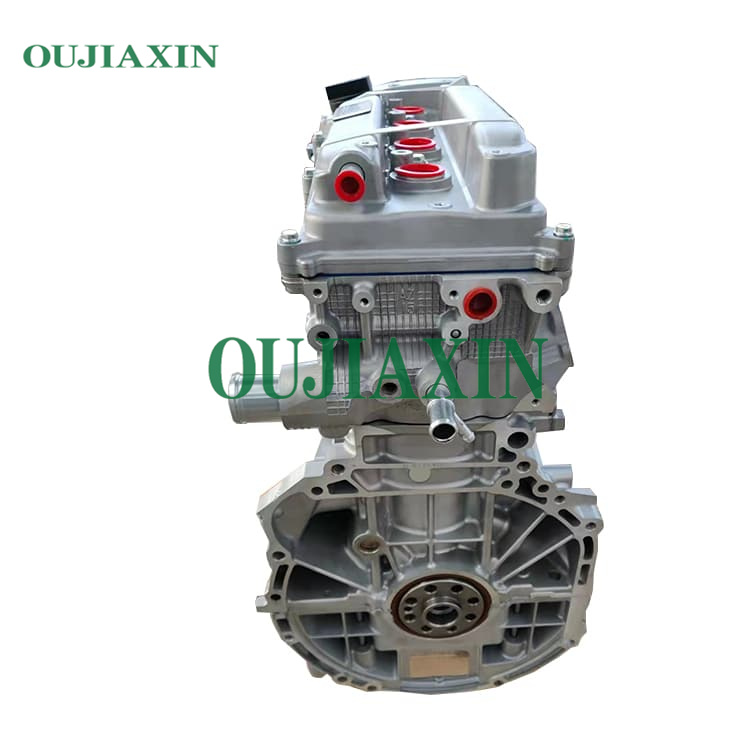

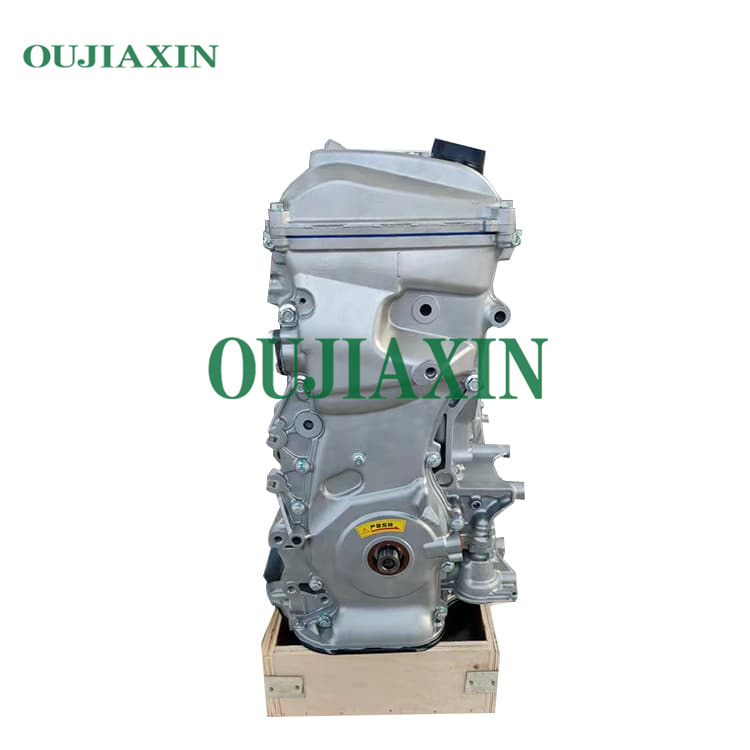

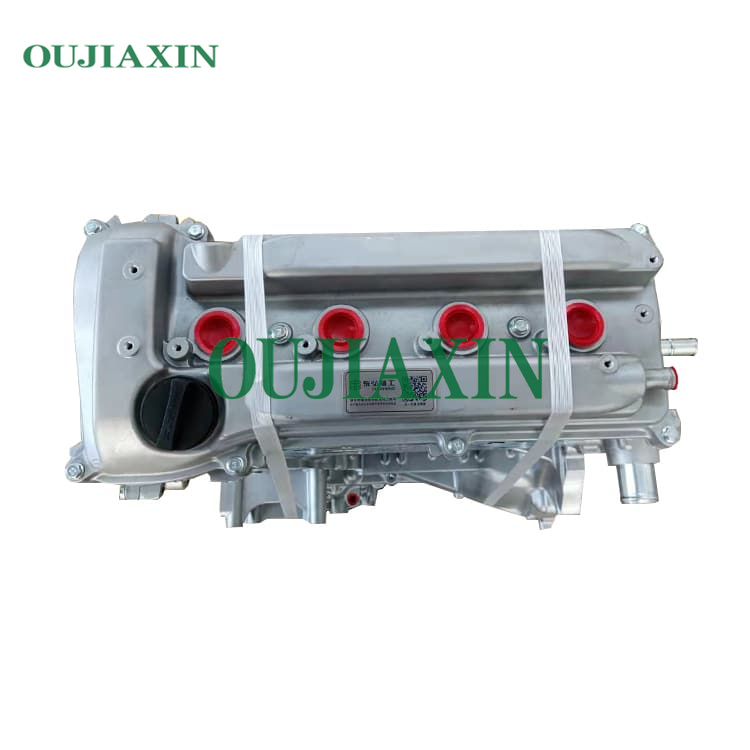

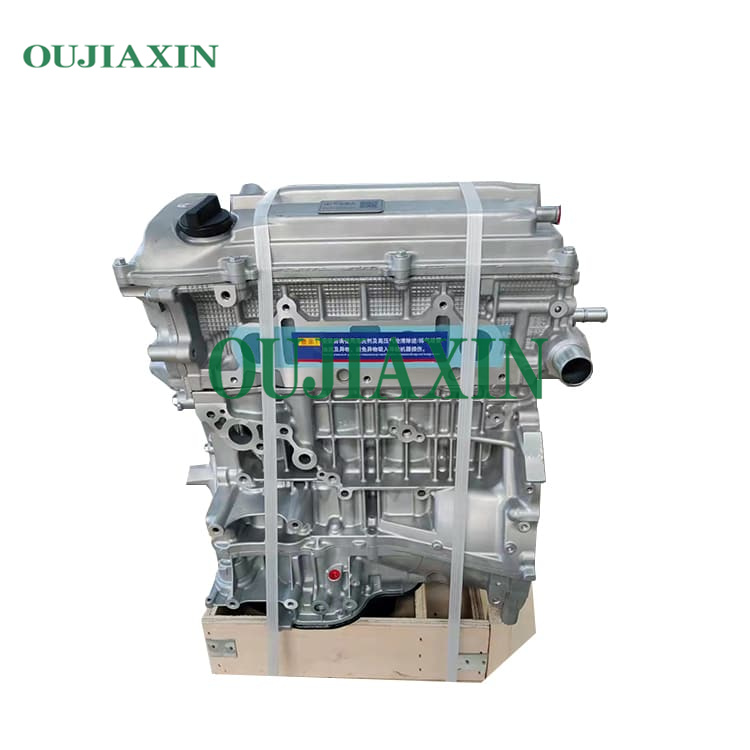

High quality 2AZ cylinder block 2AZ engine suitable for Toyota Camry RAV4 new 2AZ engine assembly

The 2AZ engine adopts the dvvt bidirectional continuously variable valve timing system, which can improve the engine’s fuel economy.
The in-line 4-cylinder 16-valve DOHC engine is equipped with Toyota’s VVT-i variable valve timing technology, and the compression ratio is also the same, 9.8.

Category: Tag:

Description

2AZ-FE: The 2AZ-FE is 2.4 L (2,362 cc) with a total displacement of 2.4 L (2,362 cc), a bore and stroke of 88.5 mm × 96 mm (3.48 in × 3.78 in), and a compression ratio of 9.6:1. Output is 160 hp (119 kW) at 5600 rpm; torque is 220 N·m (162 lb·ft) at 4000 rpm.

Later versions of the 2AZ-FE engine were upgraded with a 9.8:1 compression ratio, a slightly more aggressive intake cam profile, a 6500 rpm redline and piston oil injectors. 177 hp (132 kW) in RAV4, 158 hp (118 kW) in Camry, Corolla XRS, Scion xB, and 177 hp (132 kW) in Previa/Estima/Alphard.

application:
2002–2011 Toyota Camry in Australia. ACV40R
2009–2011 Toyota Matrix S (USA)/XR (Canada)/XRS
2009–2010 Pontiac Vibe
2009–2010 Toyota Corolla XRS (sold only in Mexico and Canada 2011–2013)
2002–2008 Toyota Camry Solara
2004–2012 Toyota RAV4
2000–2007 Toyota Highlander/Kluger
2000−2013 Toyota Harrier
2000-2019 Toyota Estima / Toyota Previa / Toyota Tarago
2001-2010 Toyota Ipsen
2002−2015 Toyota Alphard
2008−2015 Toyota Vellfire
2006−2012 Toyota Blade
2003-2009 Toyota Ansi
2005–2010 Scion tC
2008–2015 Sion xB
2007-2013 Toyota Mark X ZiO

Other models:：2AZ-FSE: The 2AZ-FSE is 2.4 L (2,362 cc). Bore and stroke are 88.5 mm × 96 mm (3.48 in × 3.78 in), and the compression ratio is 11.0:1. Output is 163 PS (120 kW; 161 hp) at 5800 rpm and torque is 231 N·m (170 lb·ft) at 3800 rpm. The 2AZ-FSE features Toyota’s D-4 direct injection system.

Applications:
Toyota Avensis

2AZ-FXE: 2AZ-FXE is the Atkinson cycle variant of 2AZ-FE. It has the same bore and stroke, but the intake cam and piston are unique. Its physical compression ratio is 12.5:1.

application:
2003–2014 Toyota Alphard Hybrid
Toyota Estima Hybrid
2007–2011 Toyota Camry Hybrid AHV40
2010–2014 Lexus HS 250h
2009–2017 Toyota Racing

1AZ-FE：The 1AZ line of engines have 2.0 L (1,998 cc) displacements.

1AZ-

FE is 2.0 L (1,998 cc). The Camry Aurion version develops 108 kW (145 hp) at 6000 rpm and 190 N·m (140 lb·ft) of torque at 4000 rpm. Rav4 and Ipsum engines are rated at 148–150 hp (110–112 kW) at 6000 rpm and 142 lb·ft (193 N·m) at 4000 rpm.

Applications:

2002-2006 Toyota Camry (Southeast Asia/Taiwan version)
2006–2009 Toyota Camry (Aurion Edition)
2000–2003 Toyota RAV4
2003-2006 Toyota RAV4 European version
2001–2009 Toyota Ipsum
2004–2008 Toyota Wish (Southeast Asia/Taiwan Version)
1AZ-FSE: The 1AZ-FSE has a displacement of 2.0 L (1,998 cc). Bore and stroke are 86 mm × 86 mm (3.39 in × 3.39 in), and the compression ratio is 11.0:1. Power output is 149 PS (110 kW; 147 hp) at 5700 rpm and torque is 196 N·m (145 lb·ft) at 4000 rpm. The 1AZ-FSE features Toyota’s D-4 direct injection system.
