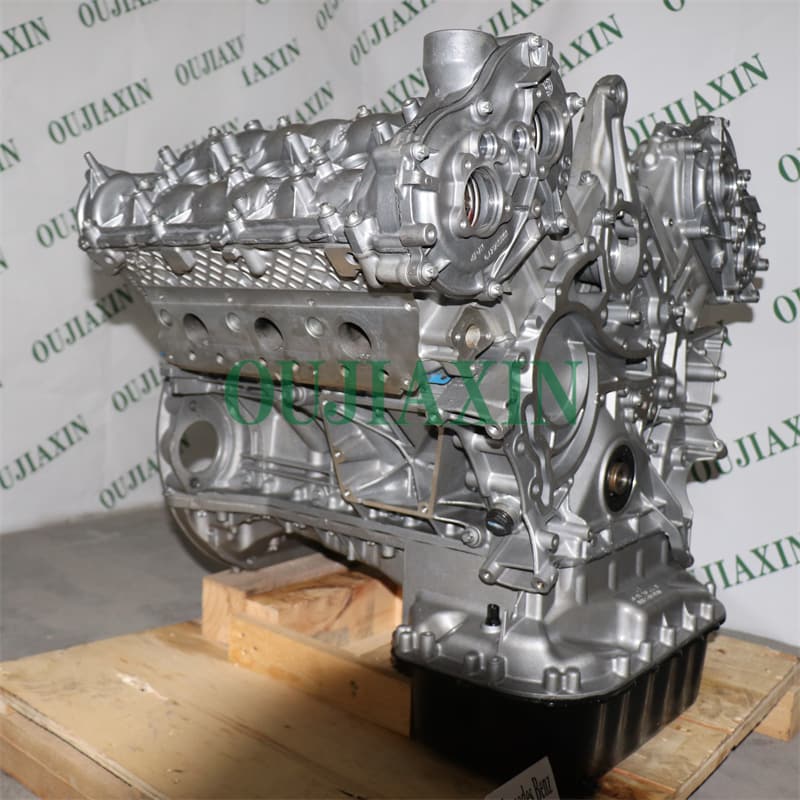

OUJIAXIN Factory Price M272 3.5L Engine For Mercedes Benz long block engine

ENGINE Mertedes benz 272-3.5

Category: Tag:

Description

The Mercedes-Benz M272 engine is an automobile piston V6 engine family used in the 2000s (decade). Introduced in 2004, it is based on the M112 V6 introduced in 1998.

All M272 engines have aluminum engine blocks with a 90° V-angle with silicon/aluminum lined cylinders. The aluminum DOHC cylinder heads have 4 valves per cylinder. All have forged steel connecting rods, one-piece cast crankshaft, iron-coated aluminum pistons and a magnesium intake manifold. Like the M112, a balance shaft is installed in the engine block between the cylinder banks to deal with vibrations in the 90 degree V6 design. This essentially eliminates first and second order moments. A dual-length Variable Length Intake Manifold is fitted to optimize engine flexibility.

Continuous VVT was adopted for the first time. Featured on both the intake and exhaust camshafts, each can be varied through a range of 40 degrees. The twin spark plug system was replaced by a regular single spark plug per cylinder. New electronic coolant flow control has replaced the mechanical thermostat for improved engine warm-up and optimum control of engine temperature. Also tumble flaps are used to improve output at low engine speeds.

Applications:
2005–2007 W203 C 230
2007–2009 W204 C 230
2005–2009 W211 E 230
2008–2011 CL203 CLC 230
2010–2012 W639 Viano (Chinese market; known as the M272 924)
2010–2011 W639 Vito (Chinese market; known as the M272 924)
