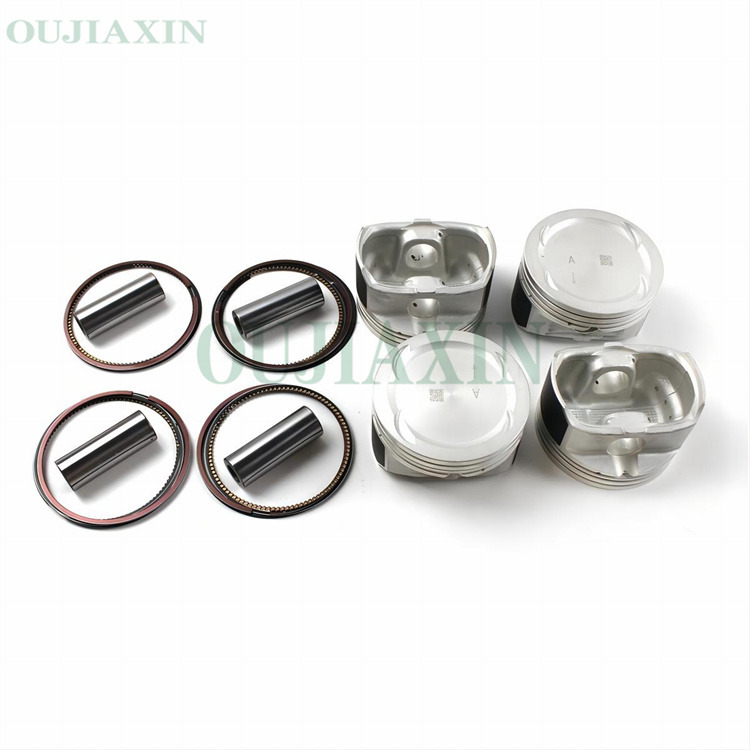

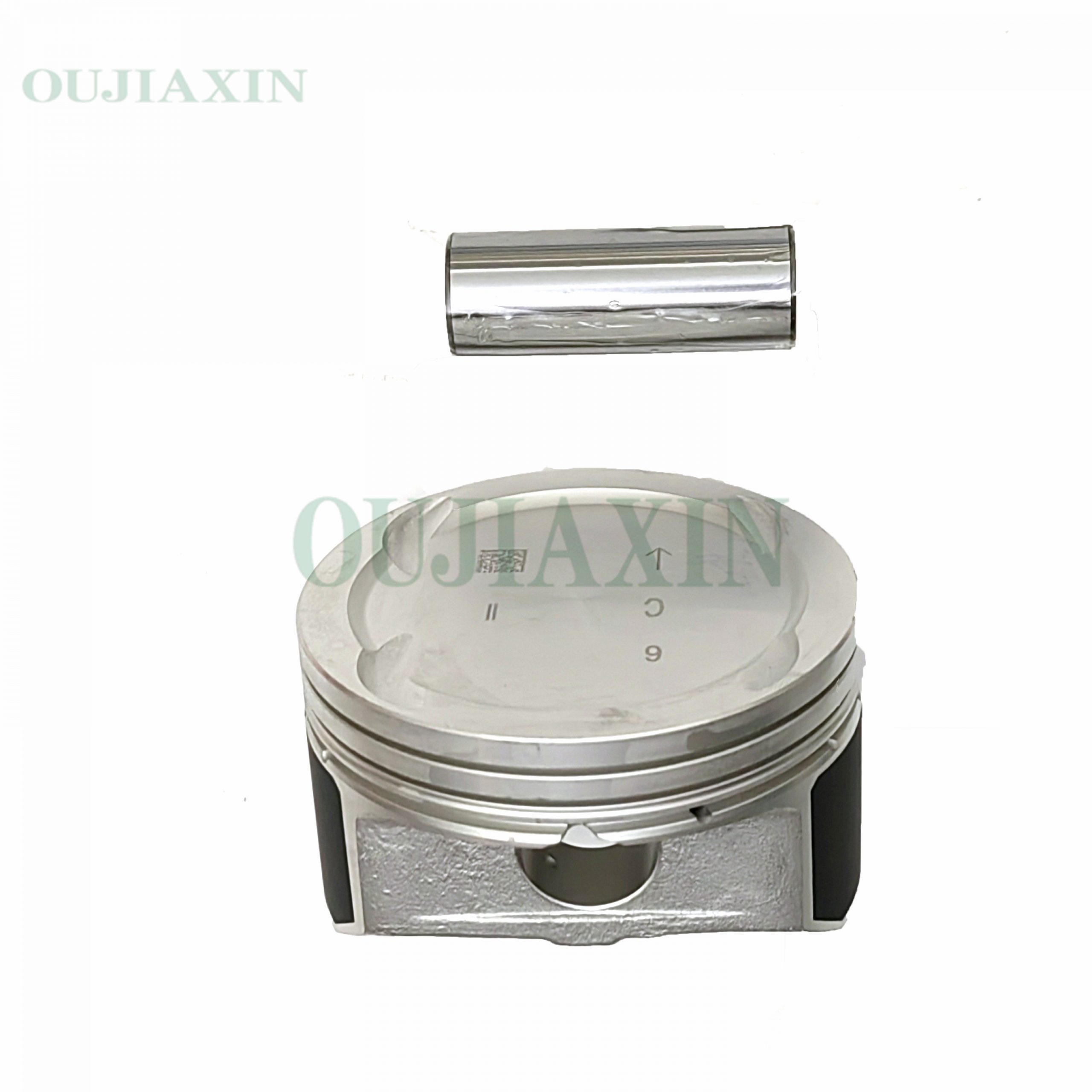

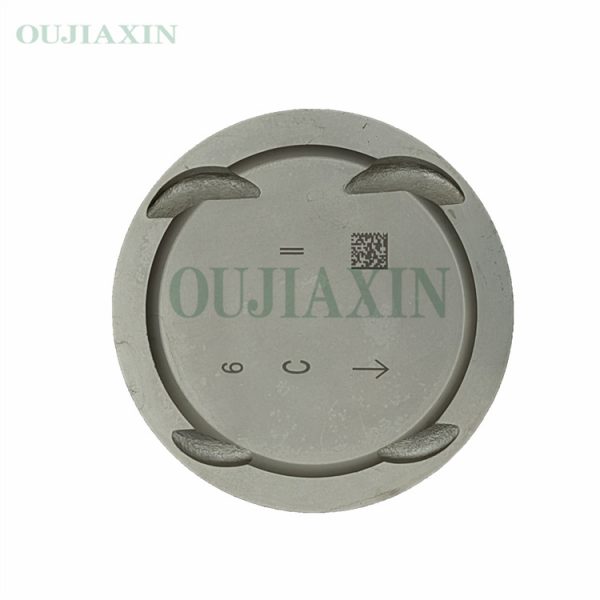

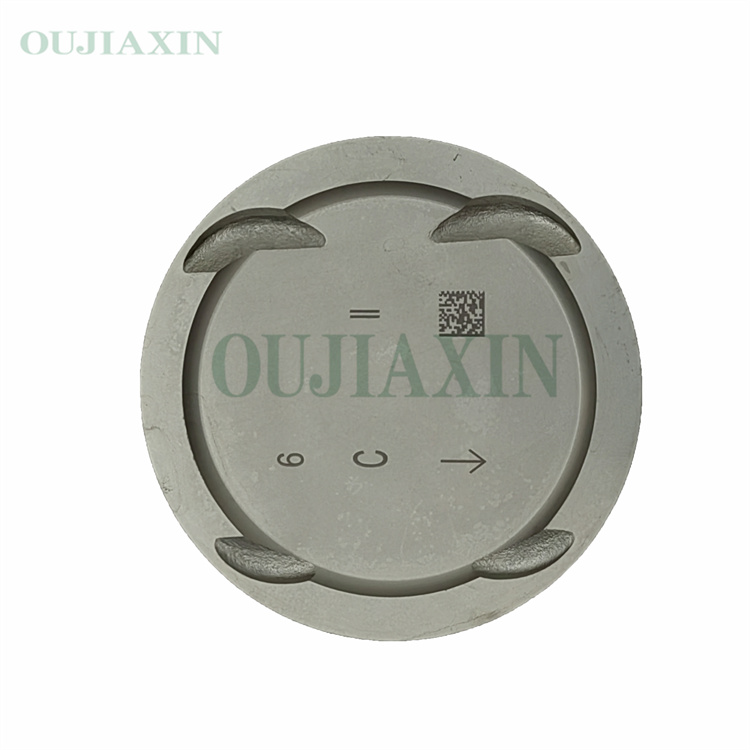

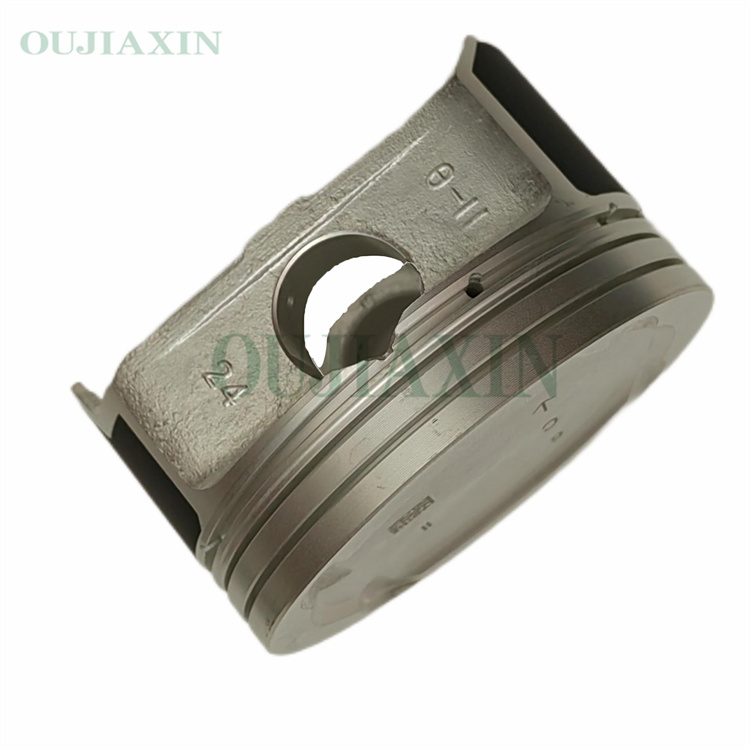

Engine piston 23410-2G201 for Hyundai G4KE G4KG 2.4L engine

The 2.4L Theta II FR MPi engine (G4KG) for RWD applications has a compression ratio of 10.5:1 and produces 175 PS (129 kW; 173 hp) at 6,000 rpm and 23.2 kg⋅m (168 lb⋅ft; 228 N⋅m) of torque at 4,200 rpm.

Application
Hyundai Starex (TQ) (2007–2021)

Category: Tag:

Description

Model: G4KE G4KG
Applicable models: Beijing Hyundai ix35 Hyundai H-1 Huiyi TQ 2.4L
Diameter: 88mm (mm)
Number of ring grooves: 3
Piston ring structure: steel belt combined oil ring
Piston ring cross-section shape: barrel ring
Surface carburizing depth: 0.1
Surface hardness: greater than 500HV
Material: ZL109
Cylinder strength: 88
Cylinder diameter: 88mm
Cylinder type: inline four-cylinder
Accessory number: 23410-2G201
Applicable car series: Hyundai
Applicable model: G4KE G4KG
Compression height: 28.5mm (mm)
General tolerance according to: national standard
Oil ring: 2.0
Center hardness: greater than 350HV
Applicable models: Beijing Hyundai ix35 Hyundai H-1 Huiyi TQ 2.4L
Matching relationship: applicable
OE: 23410-2G201
Applicable car brand: Hyundai
Applicable model year: 2010-2017
