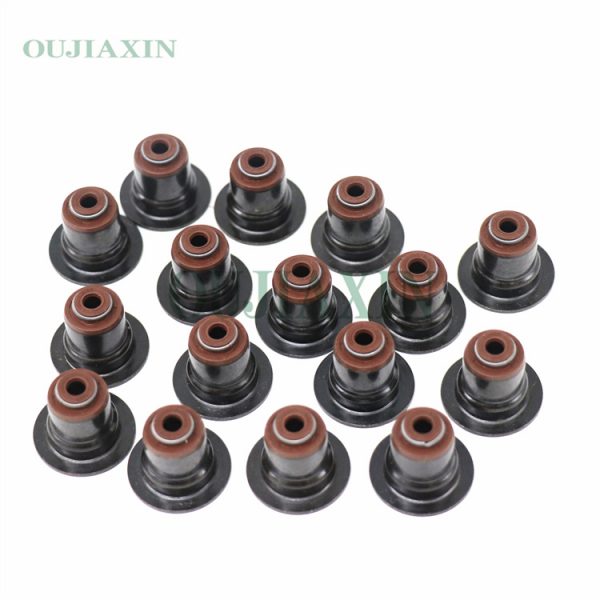

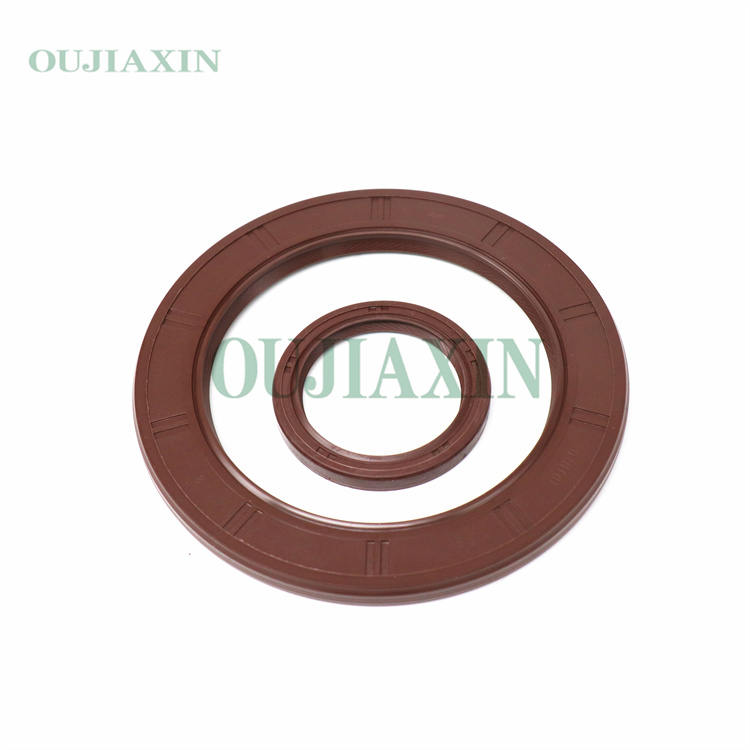

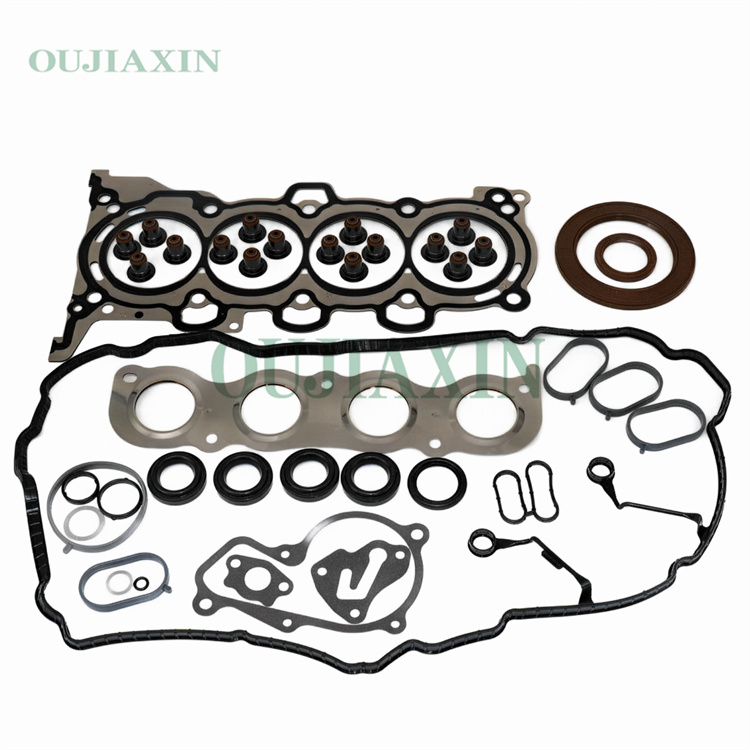

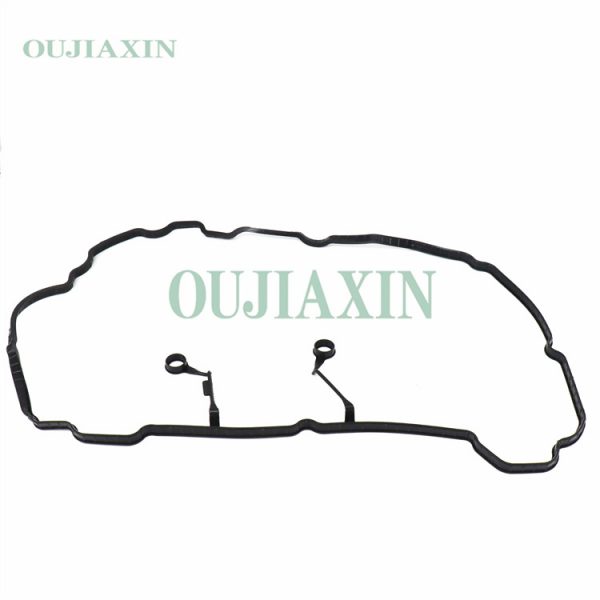

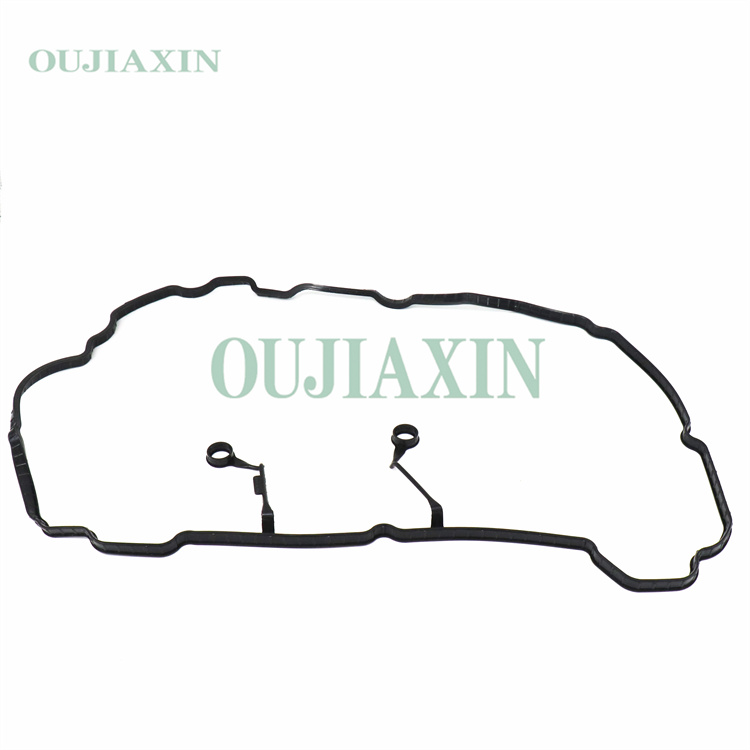

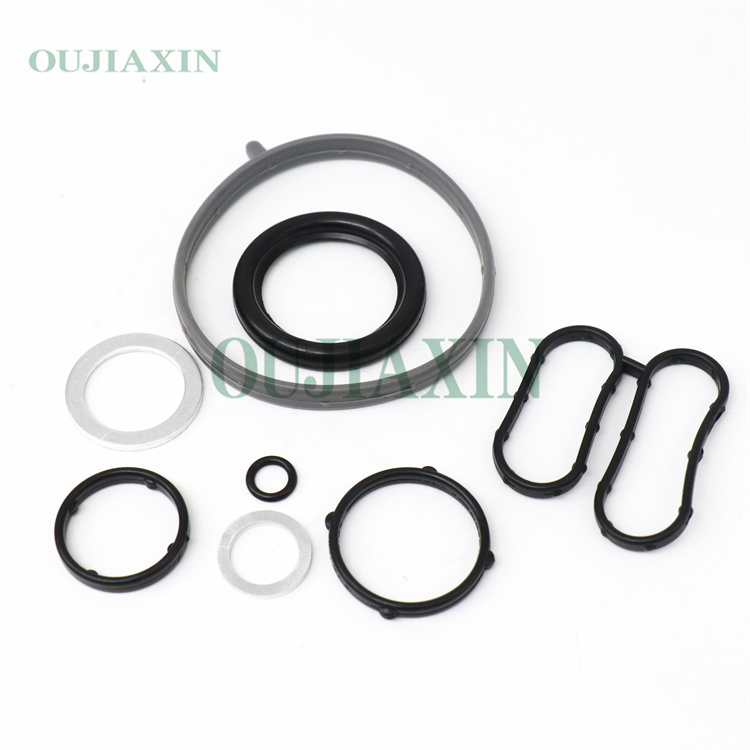

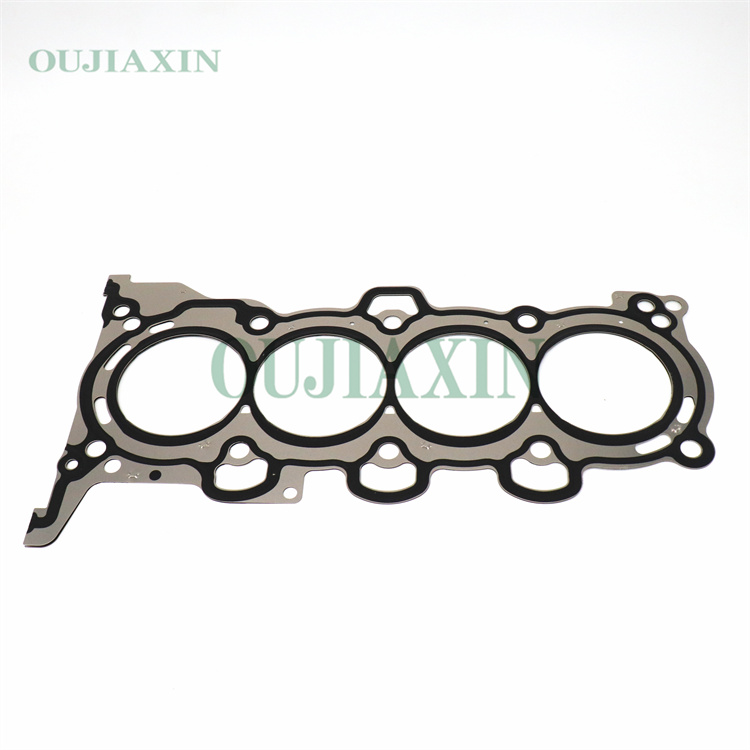

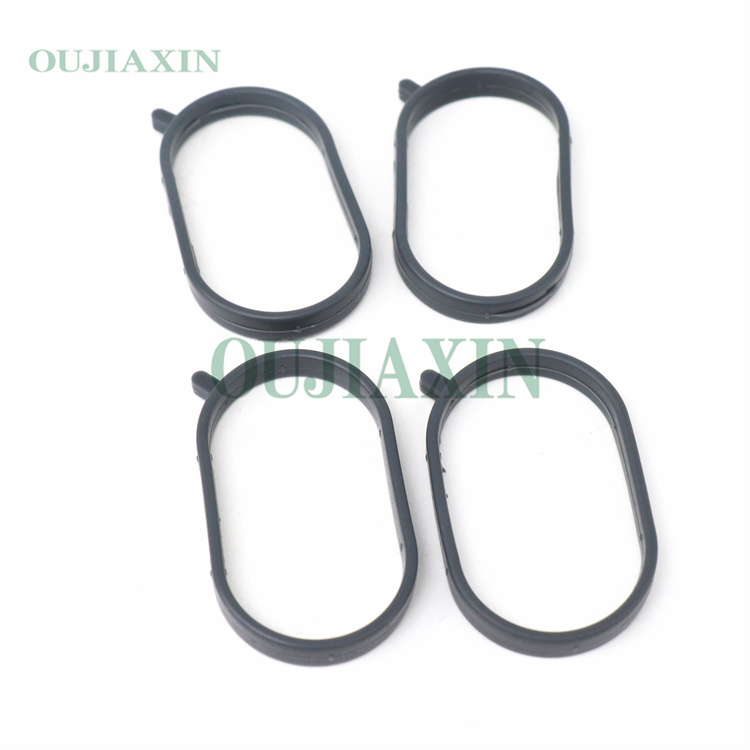

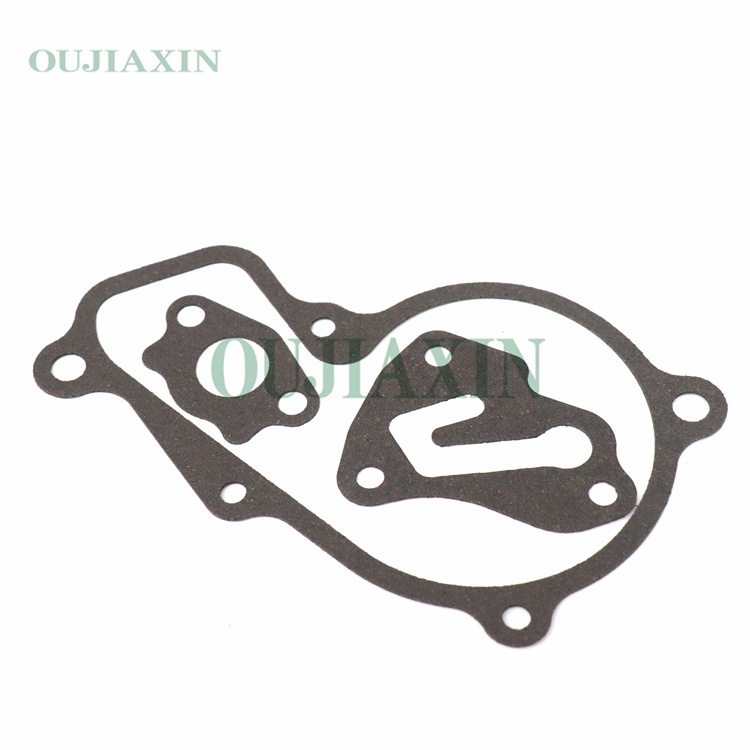

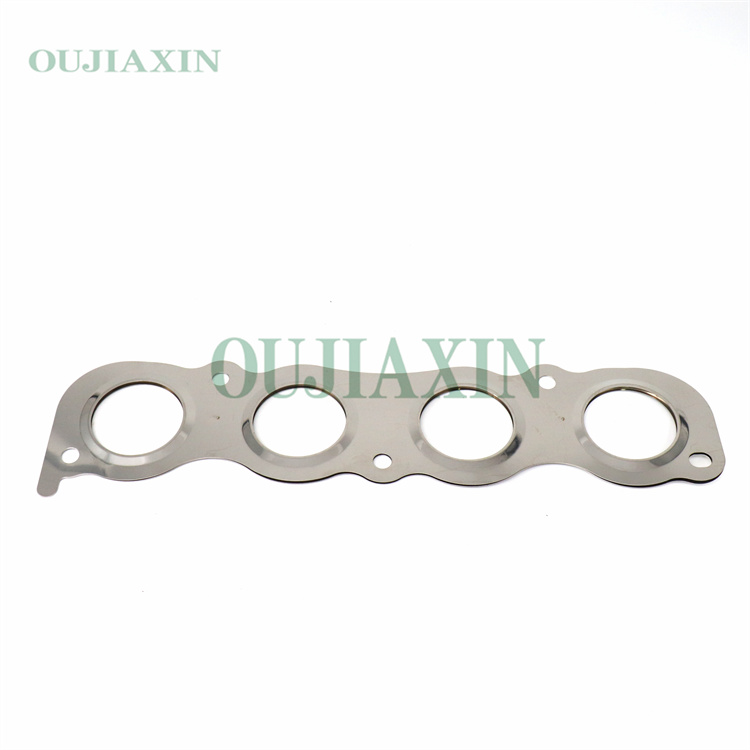

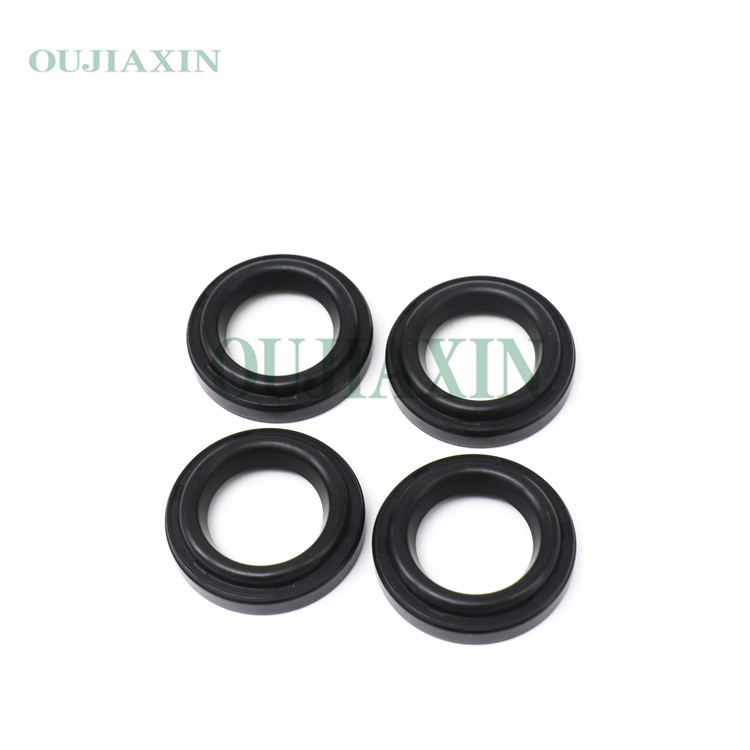

Engine overhaul kit G4NH 209102EU11 Applicable model name picture (CF) 2013-2020 Kaishen 2017-2020

Description

Associated engines:

2.0L Atkinson cycle (G4NH)
First released for the sixth-generation Hyundai Elantra, the Atkinson cycle version of the Nu MPi 2.0L has a compression ratio of 12.5:1 and produces 149 PS (110 kW; 147 hp) at 6,200 rpm, 18.3 kg·m (132 lb·) ft; 179 N·m) of torque at 4,500 rpm.

The engine is expected to offer improved fuel economy and better thermal efficiency compared to the Nu MPi 2.0L (G4NA) engine.

Application areas
Hyundai Elantra (AD) (2015–2020)
Hyundai Kona (OS) (2017–2020)
Hyundai Tucson (TL) (2015–2020)
Hyundai Veloster (JS) (2018–2020)
Kia Forte (BD) (2018-present)
Kia Seltos (2019-present)
Kia Soul (SK3) (2019-present)

2.0L (G4NC): The Nu GDi 2.0 L (1,999 cc) version of this engine has the same 81 mm (3.19 in) bore but a longer 97 mm (3.82 in) stroke and produces 176 PS (129 kW; 174 hp) at 6,500 rpm and torque of 21.7 kg·m (157 lb·ft; 213 N·m) at 4,700 rpm.

Application areas
Hyundai Elantra (MD) (2013–2015)
Hyundai Elantra Coupe (JK) (2014)
Hyundai i30 (GD) (2014–2016)
Hyundai i30 (PD) (2016-present)
Hyundai i40 (2012–2019)
Hyundai Tucson (LM) (2013–2015)
Hyundai Tucson (TL) (2015–2020)
Kia Carens (RP) (2013–2019)
Kia Forte (YD) (2012–2018)
Kia KX5 (2015–2021)
Kia KX7 (2016–2022)
Kia Soul (2012–2019)
Kia Sportage (QL) (2015–2021)
Kia Sportage Ace (NP) (2021-present)

2.0L CVVL (G4ND)
The main change is an increase in CVVL, with the engine producing 172 PS (127 kW; 170 hp) at 6,700 rpm and 20.5 kg·m (148 lb·ft; 201 N·m) at 4,800 rpm.

Application areas
Hyundai Sonata (LF) (2014–2019)
Kia Optima (2012–2019)

2.0L (G4NA)
The Nu 2.0 L (1,999 cc) version of this engine has the same 81 mm (3.19 in) bore but a longer 97 mm (3.8 in) stroke. The first revision of the G4NA engine produced 166 PS (122 kW; 164 hp) at 6,500 rpm and 20.5 kg·m (148 lb·ft; 201 N·m) at 4,800 rpm, while later revisions produced 152–156 PS (112–115) kW; 150–154 hp) 6,200 rpm, 19.6–19.9 kg·m (142–144 lb·ft; 192–195 N·m) 4,500 rpm.

Application areas
Hyundai Creta (GS) (2014–2020)
Hyundai Creta (SU2r) (2021–2022)
Hyundai Elantra (UD) (2013–2015)
Hyundai Elantra (AD) (2015–2020)
Hyundai i40 (2011–2019)
Hyundai Mistra (CF) (2013–2020)
Hyundai Sonata (YF) (2014)
Hyundai Tucson/ix35 (LM) (2013–2015)
Hyundai Tucson (TL) (2015–2018)
Kia Carens (RP) (2013–2019)
Kia Forte (YD) (2012–2018)
Kia K4 (2014–2021)
Kia KX3 (KC) (2015–2019)
Kia Soul (2012–2019)
Kia Sportage (2014–2021)
