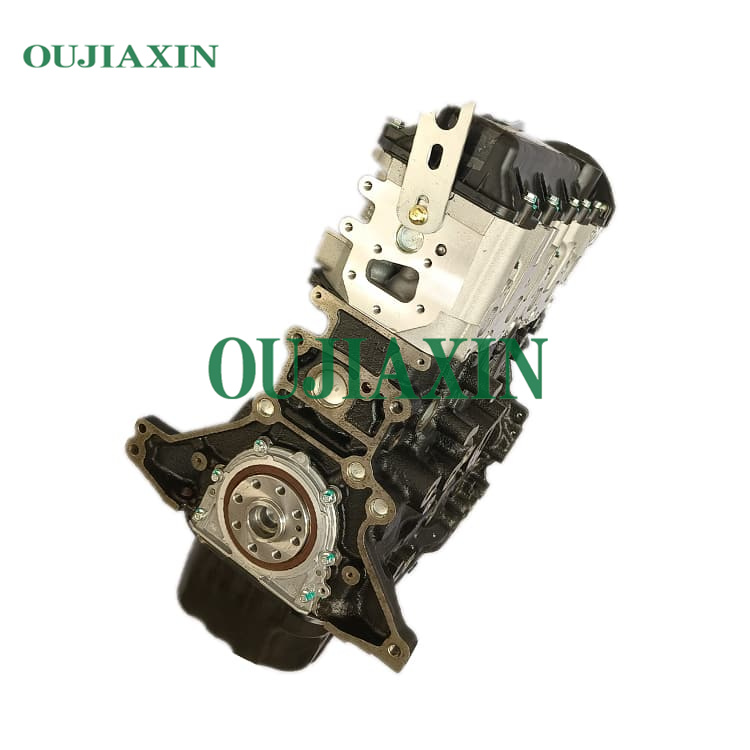

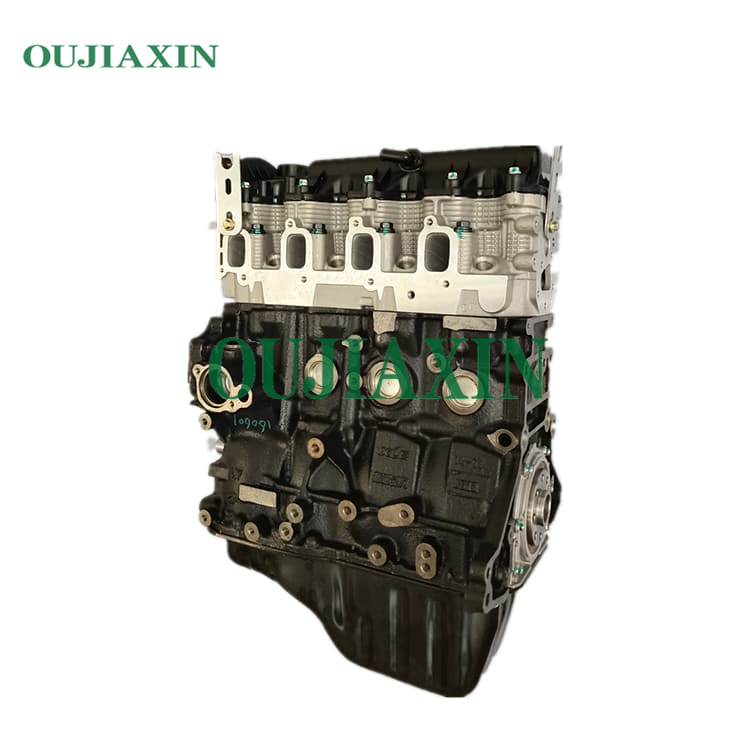

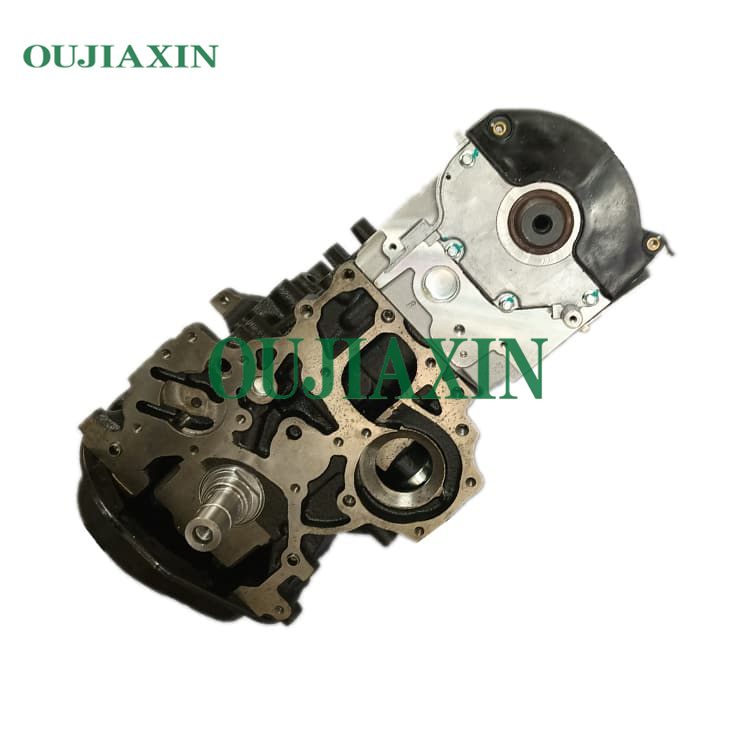

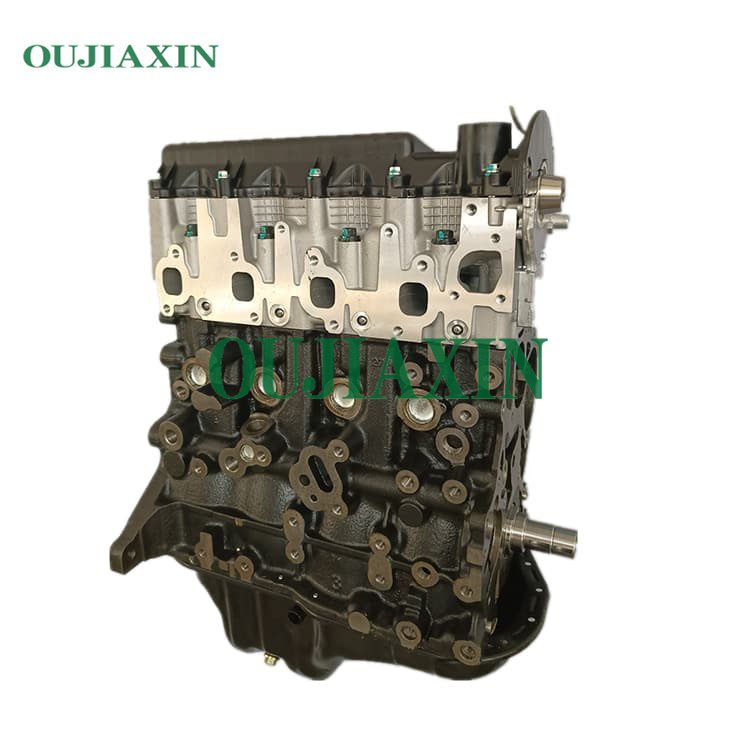

Engine Jinbei D22A 2.2T 102 horsepower L4
The D22A engine is actually an upgraded product of the 4JB1. The 4JB1 diesel engine has a maximum torque of 172 Nm and a maximum power of 57 kW, and its displacement is 2.7 liters. The maximum torque of the D22A diesel engine is 225 Nm and the maximum power is 75 kW. , its displacement is only 2.2 liters. Compared with 4JB1, the kinetic energy is increased by about 25%. Another point is that this D22A diesel engine is better than 4JB1 in terms of energy saving, saving about 2L of fuel consumption per 100 kilometers.
Description
Engine model: D22A
Engine series: D series
Scope of application: SUV, pickup truck, light passenger car, light truck
Air intake form: water cooling
Number of cylinders: 4
Fuel type: diesel
Cylinder arrangement: in-line
Displacement: 2.184L
Emission standards: National IV
Maximum output power: 75kW
Rated speed: 3800rpm
Maximum horsepower: 102 horsepower
Maximum torque: 220N.m
Maximum torque speed: 2000-2600rpm
Minimum fuel consumption rate at full load: 240g/kW.h
Engine form:
In-line four-cylinder, four-stroke, water-cooled, turbocharged, SOHC (single-position camshaft), 8-valve, electronically controlled VE pump, vortex combustion chamber ERG intercooler
Compression ratio: 22
Bore x stroke: 86X94mm
Number of valves per cylinder: 2
