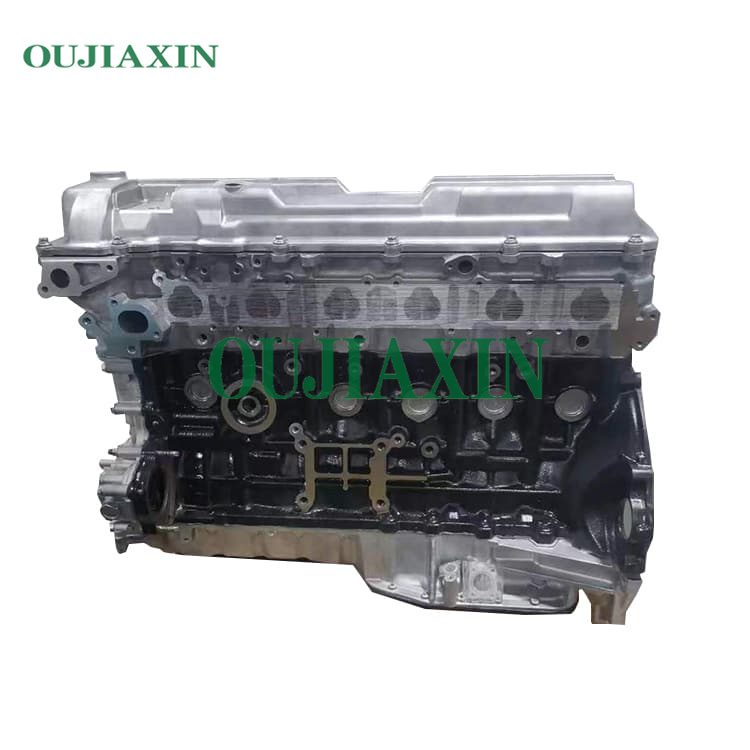

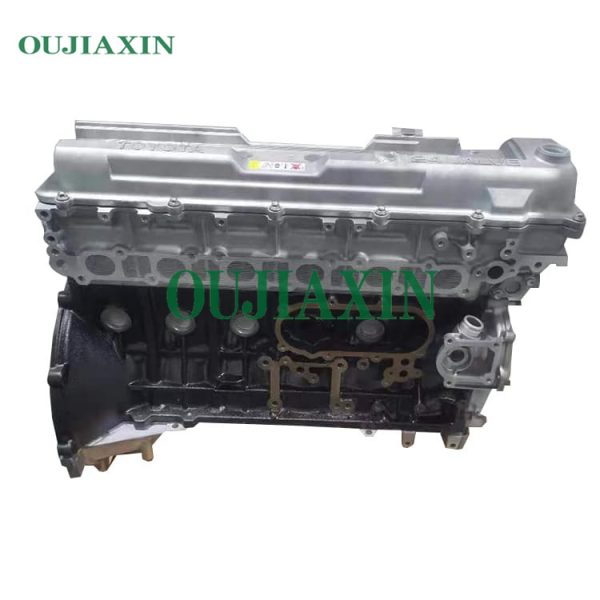

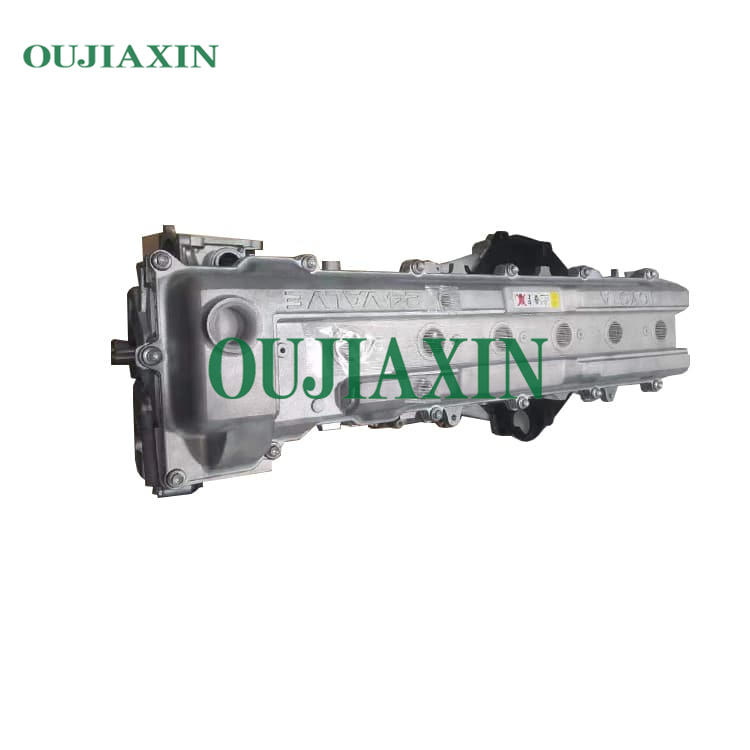

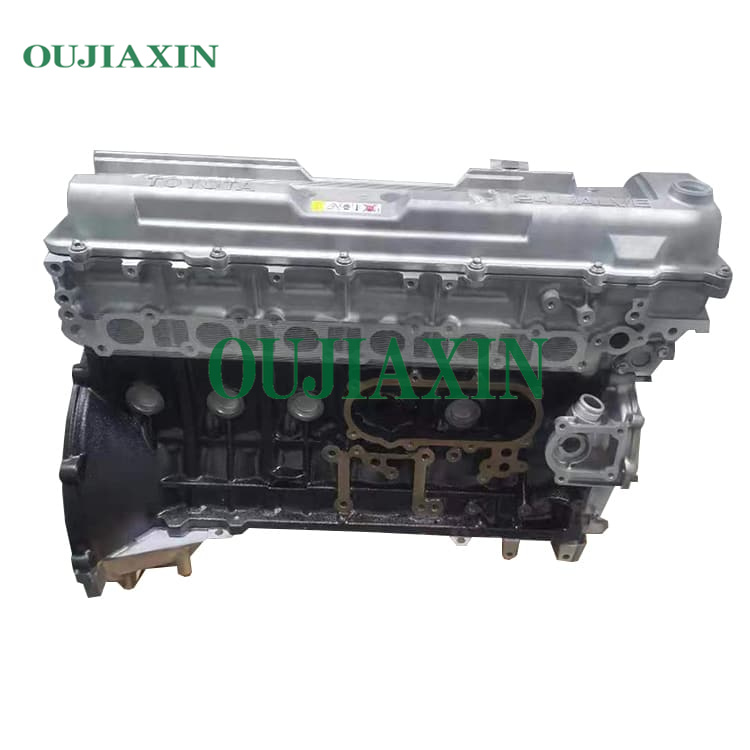

Toyota Land Cruiser 4.5L 1FZ-FE long-block engine

Engine for Toyota 1FZ 1FZ-FE Toyota 4.5L

1FZ-F and -FE are used on the following vehicles:

1992–2009 Toyota Land Cruiser (FZJ7x)
1992–2007 Toyota Land Cruiser (FZJ80)
1998–2007 Toyota Land Cruiser (FZJ100, FZJ105)
1995–1997 Lexus LX 450 (1FZ-FE only)
Toyota 5FG/5FD series forklifts
Toyota 7FG/7FD series forklifts

Description

The engine displacement is 4.5 L (4,477 cc), the bore and stroke are 100 mm × 95 mm (3.94 inches × 3.74 inches) respectively, and the compression ratio is 9.0:1; the head adopts Toyota’s narrow-angle overhead camshaft, which improves fuel economy. good. The 1FZ comes in only two models: 1FZ-F and 1FZ-FE. The only significant difference between the two is that the 1FZ-FE includes electronic fuel injection, while the 1FZ-F uses a carburetor.

The Toyota FZ engine is a 24-valve, 4.5 L (4,477 cc) DOHC inline six-cylinder internal combustion engine manufactured by Toyota to replace the F-Series engines. Due to its large displacement, smoothness, ruggedness and torque, it is mainly used in SUVs.
