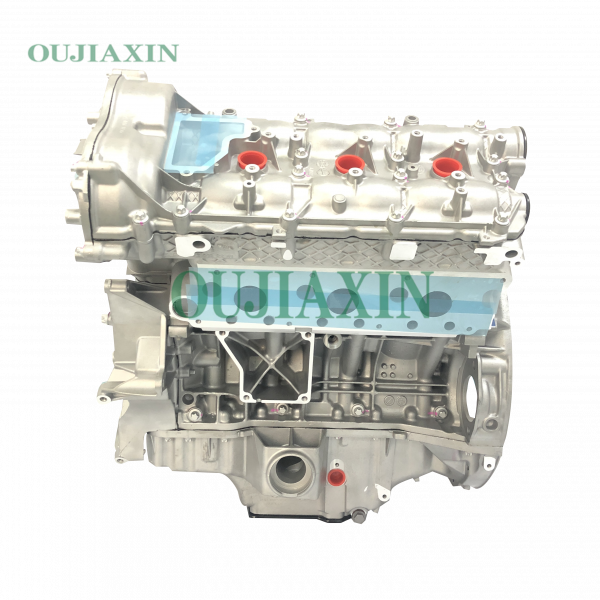

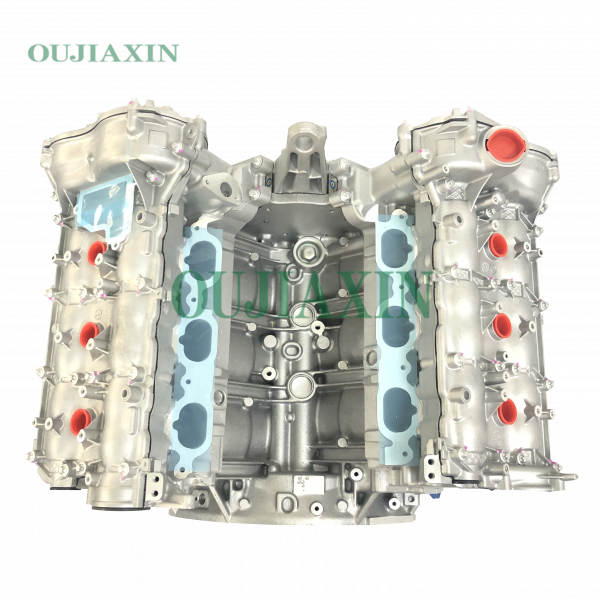

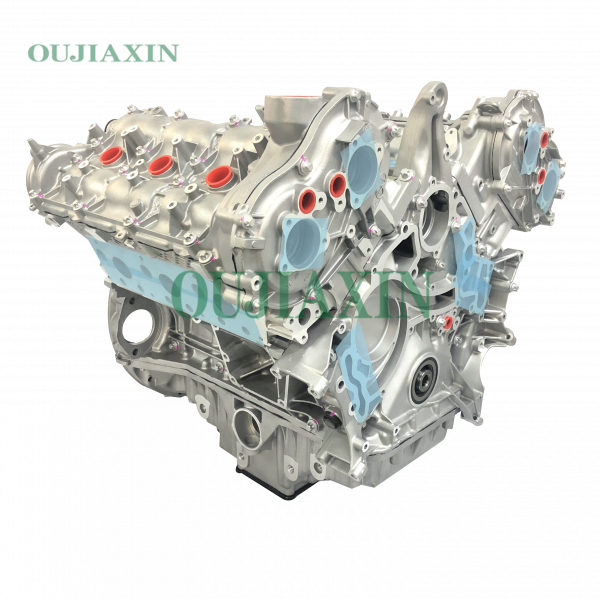

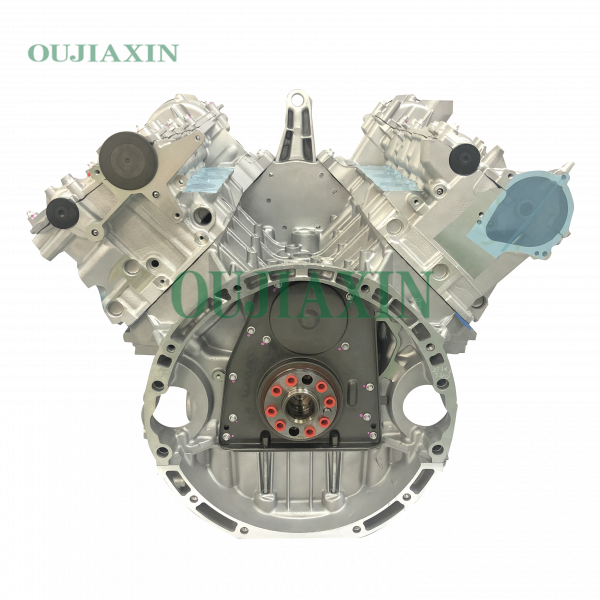

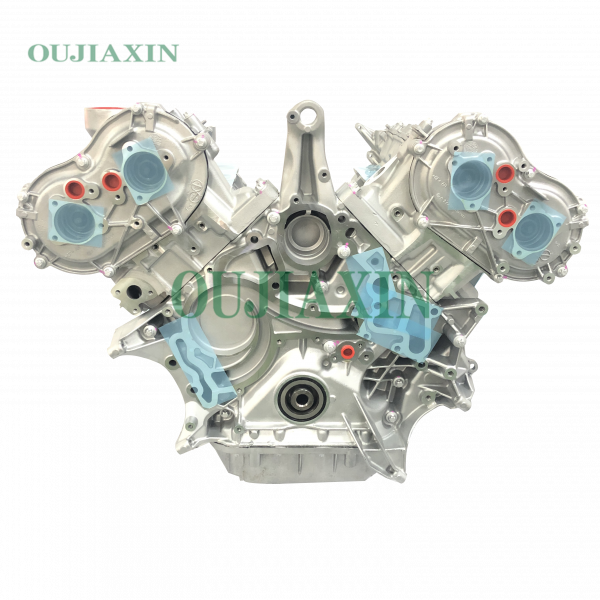

engine for Mercedes-Benz 3.0L M272

Description

The Mercedes-Benz M272 engine is an automobile piston V6 engine family used in the 2000s (decade). Introduced in 2004, it is based on the M112 V6 introduced in 1998.
All M272 engines have aluminum engine blocks with a 90° V-angle with silicon/aluminum lined cylinders. The aluminum DOHC cylinder heads have 4 valves per cylinder. All have forged steel connecting rods, one-piece cast crankshaft, iron-coated aluminum pistons and a magnesium intake manifold. Like the M112, a balance shaft is installed in the engine block between the cylinder banks to deal with vibrations in the 90 degree V6 design. This essentially eliminates first and second order moments. A dual-length Variable Length Intake Manifold is fitted to optimize engine flexibility.
Continuous VVT was adopted for the first time. Featured on both the intake and exhaust camshafts, each can be varied through a range of 40 degrees. The twin spark plug system was replaced by a regular single spark plug per cylinder. New electronic coolant flow control has replaced the mechanical thermostat for improved engine warm-up and optimum control of engine temperature. Also tumble flaps are used to improve output at low engine speeds.

The E30 is a 3.0 L (2,996 cc) version. Bore and stroke is 88 mm × 82 mm (3.46 in × 3.23 in). Output is 231 PS (170 kW; 228 bhp) at 6000 rpm with 300 N⋅m (221 lb⋅ft) of torque at 2500-5000 rpm.
Applications:
2004–2010 R171 SLK 280
2005–2010 W219 CLS 280 / CLS 300
2005–2010 C209 CLK 280
2005–2007 W203 C 280 / C 280 4MATIC
2007–2009 W204 C 280 / C 280 4MATIC
2009–2011 W204 C 300 / C 300 4MATIC
2008-2012 X204 GLK 300 4MATIC
2005–2009 W211 E 280 / E 280 4MATIC
2009–2011 W212 E 300
2005–2009 R230 SL 280
2005–2013 W639 Vito
2006–2009 W251 R 280
2007–2013 W221 S 300
2013–2015 W639 Viano (Chinese market; known as the M272 939)
2013–2015 W639 Vito (Chinese market; known as the M272 939)
