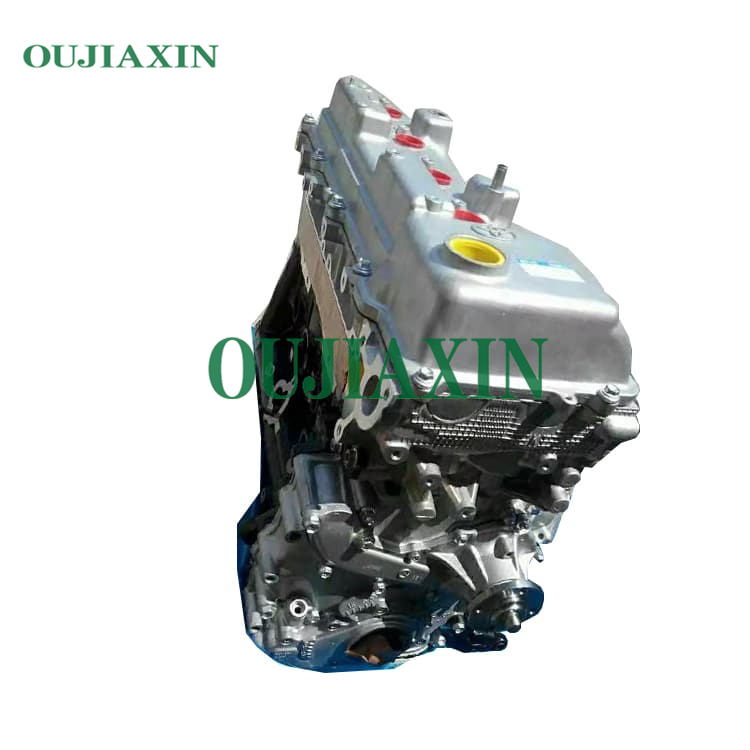

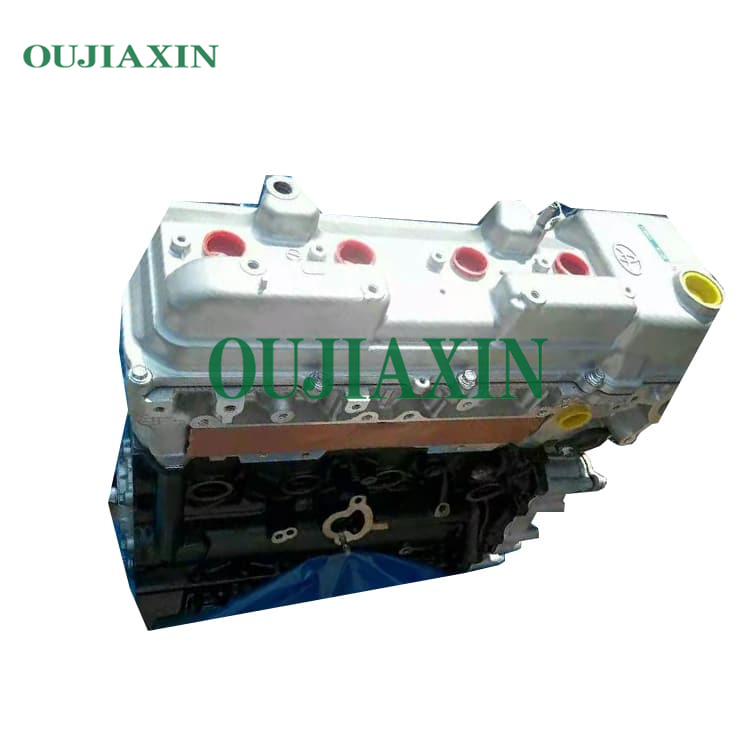

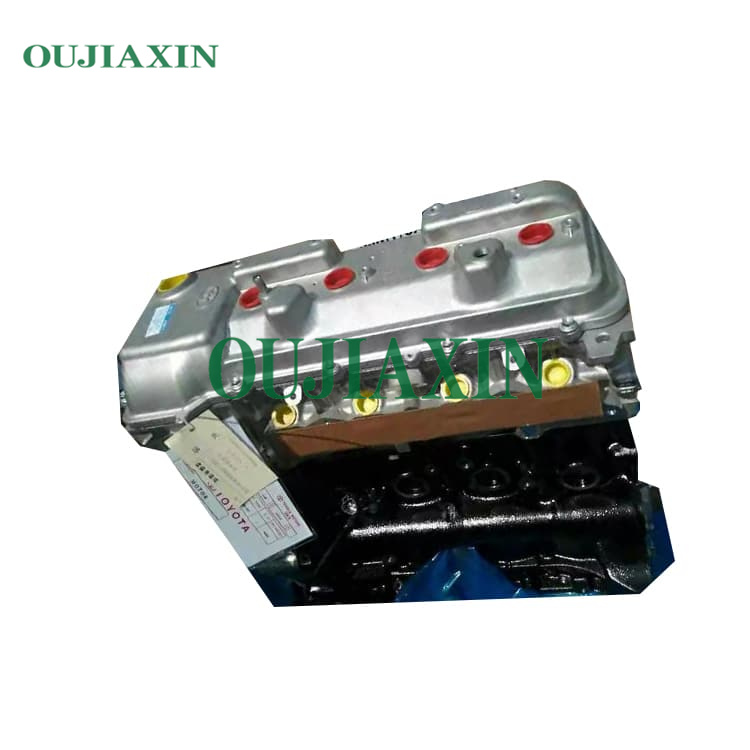

3RZ 2RZ 1RZ Engine Long Block Motor for Toyota Hilux HiAce Tacoma 4Runner Land Cruiser Prado 2.7L

The Toyota 3RZ engine is a naturally aspirated engine with relatively mature technology. This 7-speed naturally aspirated engine is widely used in models such as Prado, Hilux, Runner, Coaster, Grace, and Hiace.

Category: Uncategorized Tag: engine

Description

Description

The 3RZ-FE is the 2.7 L (2,693 cc) version. Bore and stroke are 95 mm × 95 mm (3.74 in × 3.74 in). Compression ratio is 9.5:1. Output is 150 hp (112 kW; 152 PS) at 4800 rpm and torque is 177 lb·ft (240 N·m). The engine has a twin chain-driven balance shaft. Four valves per cylinder, dual overhead camshafts. Valve adjustment is by shims above the buckets. The 3RZ-FE is an interference engine with a timing chain.

Application:

1995–2004 Toyota Tacoma
1996–2000 Toyota 4Runner
1994–1998 Toyota T100
1995–2002 Granvia
1995–2004 Toyota Hilux
1990–2004 Toyota HiAce
2001–2009 Toyota Land Cruiser Prado (Venezuela)
1996–2004 Toyota Land Cruiser Prado
1998–2002 Toyota Touring Hiace
