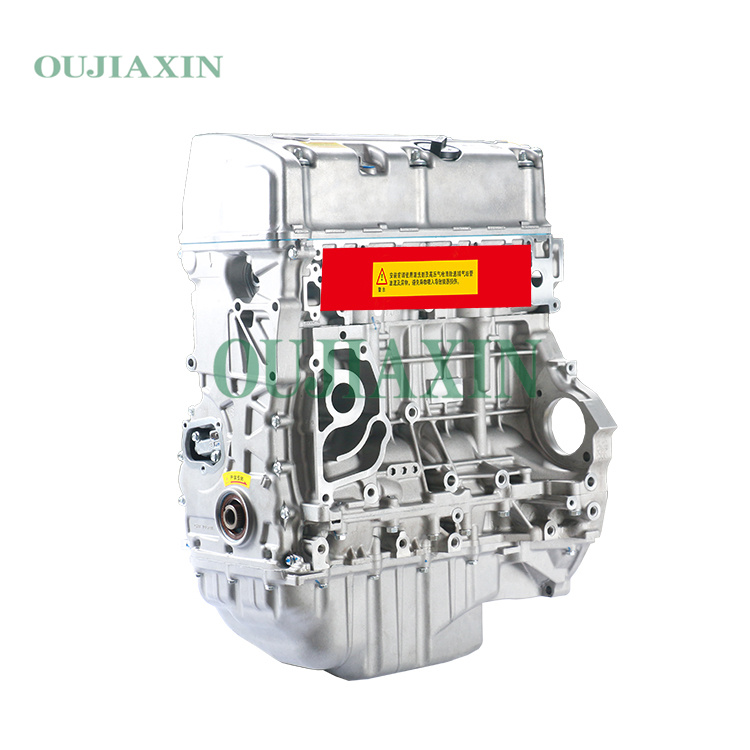

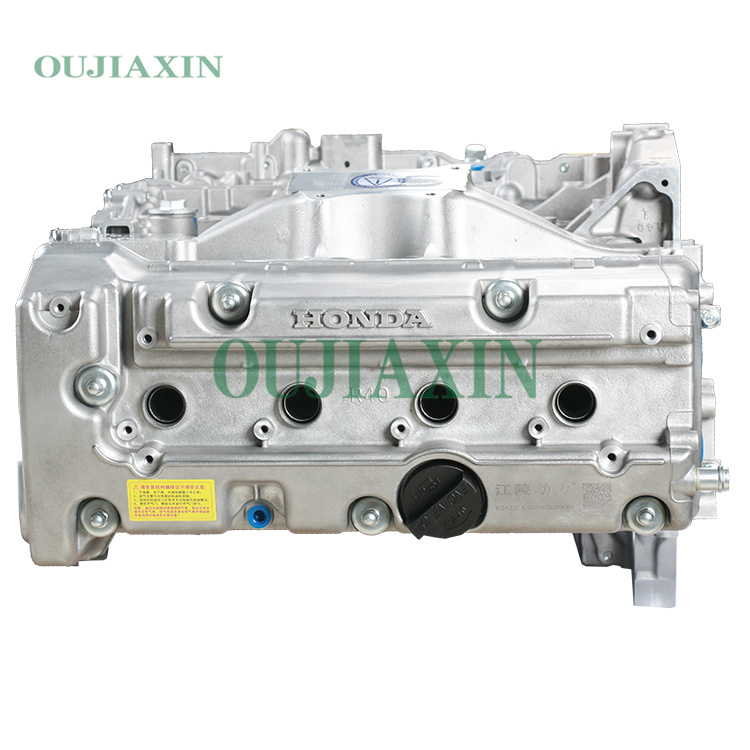

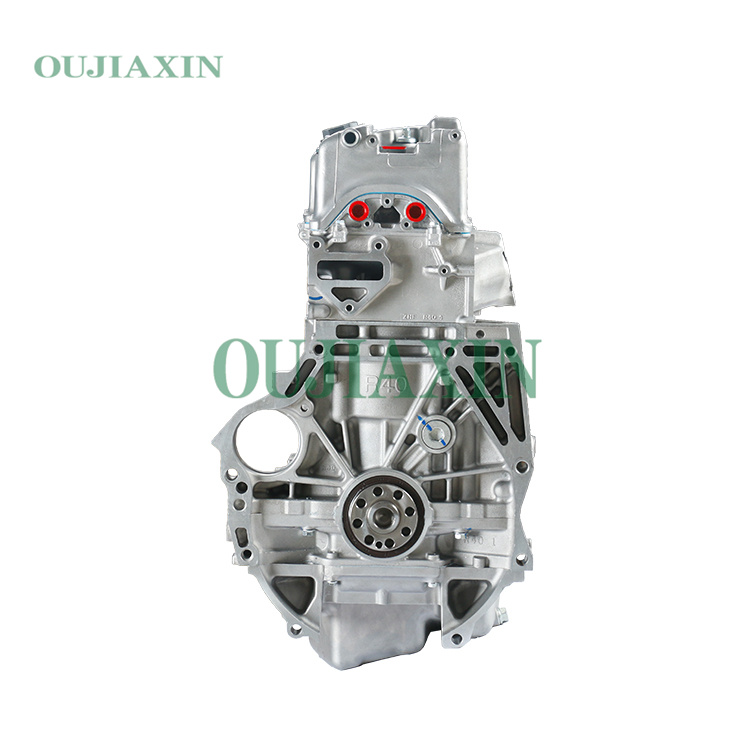

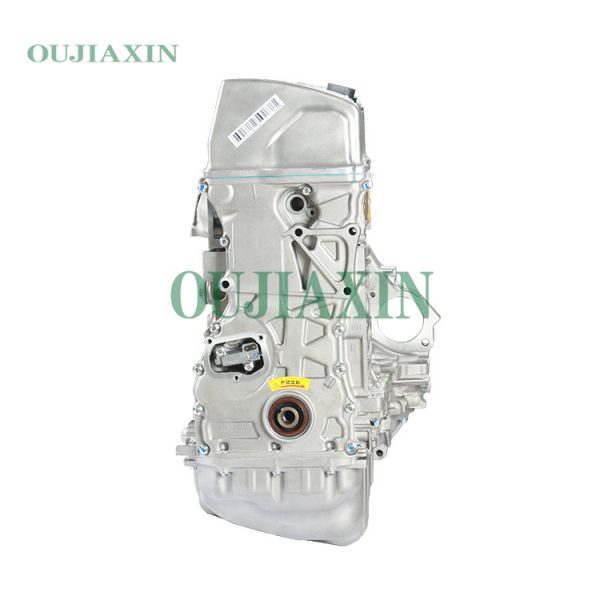

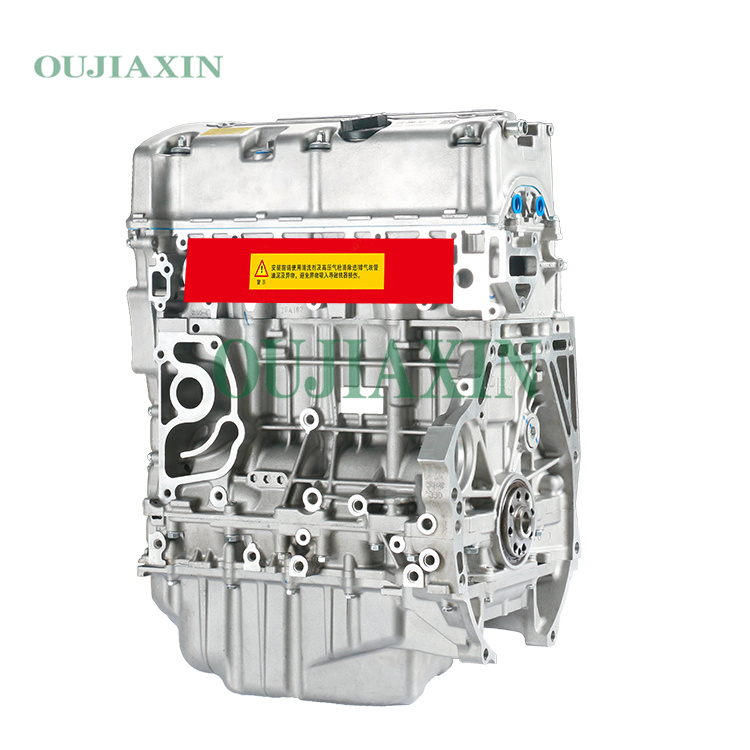

2.4L K24Z2 Engine Assembly Motor Auto Parts for Honda

The K24Z2 engine uses the i-VTEC intelligent variable valve timing and lift control system, which can automatically adjust the valve timing and lift according to driving conditions to improve engine efficiency and performance.

Category: Tag:

Description

Applications
2008–2012 Honda Accord LX/LX-P (USDM/CDM)
2016–2020 Proton Perdana
Compression Ratio
10.5:1
Power
177 hp (132 kW) at 6500 RPM
Torque
161 lb⋅ft (218 N⋅m) at 4300 RPM
Redline
6800 RPM
Rev Limiter
7100 RPM
i-VTEC
Engages
5100 RPM

‌Displacement‌: 2354ml
‌Maximum torque‌: 225Nm/4500rpm
‌Number of valves‌: 8 (intake)/8 (exhaust)
‌Emission standard‌: GB18352.3-2005 (National IV)
‌Valve mechanism‌: i-VTEC intelligent variable valve timing and lift control system
‌Whether to use supercharging system‌: No
‌Engine net mass‌: 142kg
‌Dimensions‌ (length×width×height): 650×720×710mm
‌Cylinder material‌: aluminum cylinder body
‌Cylinder diameter×stroke‌: 87×99mm
‌Fuel type‌: RON93# or above unleaded gasoline
‌Effective fuel consumption rate‌: 267g/kW·h
